Lottery draw machines for when trust is on the line.
Mechanical-mix and air-mix lottery draw machines built entirely at our New Jersey facility — many in continuous operation for over 20 years. Engineered to deliver verifiable randomness for the highest-stakes draws in the world.
How the balls get drawn determines the experience.
Smartplay manufactures two complementary families of lottery draw machines. Both are designed, engineered, and built in-house. Both meet the same certified randomness, security, and audit standards. The difference is mechanical — and the choice depends on your game format, broadcast environment, and operational tempo.

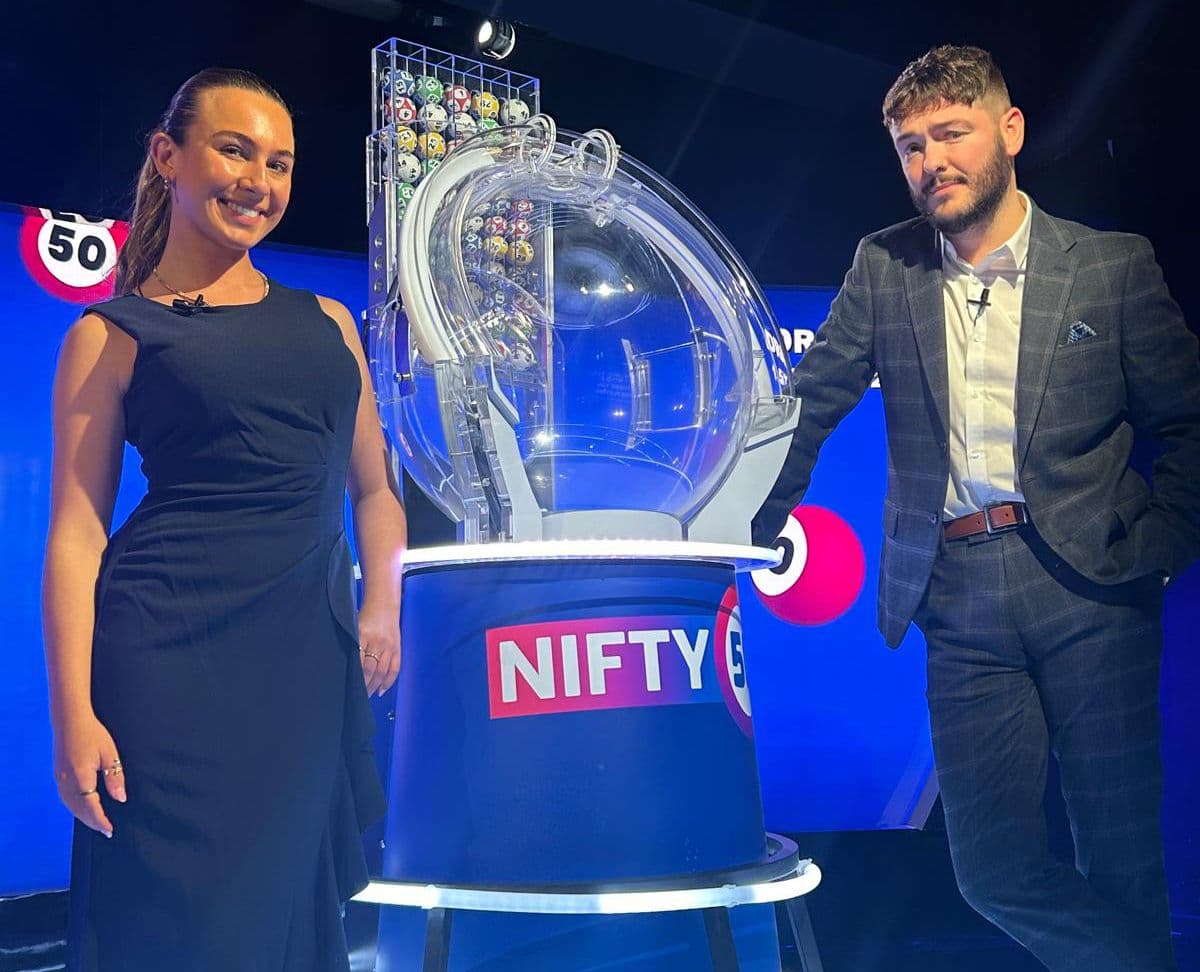

Live deployment
Halogen® · Betfred, United Kingdom
Air-Mix Lottery Machines
A blower agitates the balls inside a chamber; draws happen by air pressure. The most visually dynamic format — and the foundation for high-frequency keno, daily, and continuous-play games.
Mechanical-Mix Lottery Machines
Rotating arms or paddles mix the balls mechanically. Balls fall through gravity into the draw chamber. Used for the world's highest-stakes draws — Powerball, WLA national lotteries, broadcast jackpots.
Custom Games
Signature draw games and promotional rigs — novelty formats and branded equipment designed and fabricated in-house to your specification.
Accessories
The hardware that completes a draw installation — stands, transport cases, lighting and security equipment.
Lottery RNG Systems
Certified digital random number generators for draws that run without balls — auditable, secure and broadcast-ready.
Air mix lottery machines.
Emerald
Classic Lottery Draw Technology with Elevated Ball Display
Traditional air-mix lottery machine capable of previewing up to 40 balls and selecting up to 7 winning numbers with either interactive or fully automatic operation.
- Max Capacity
- 40 balls
- Draw Capacity
- Up to 7 balls
- Weight
- 260 lbs (118 kg)

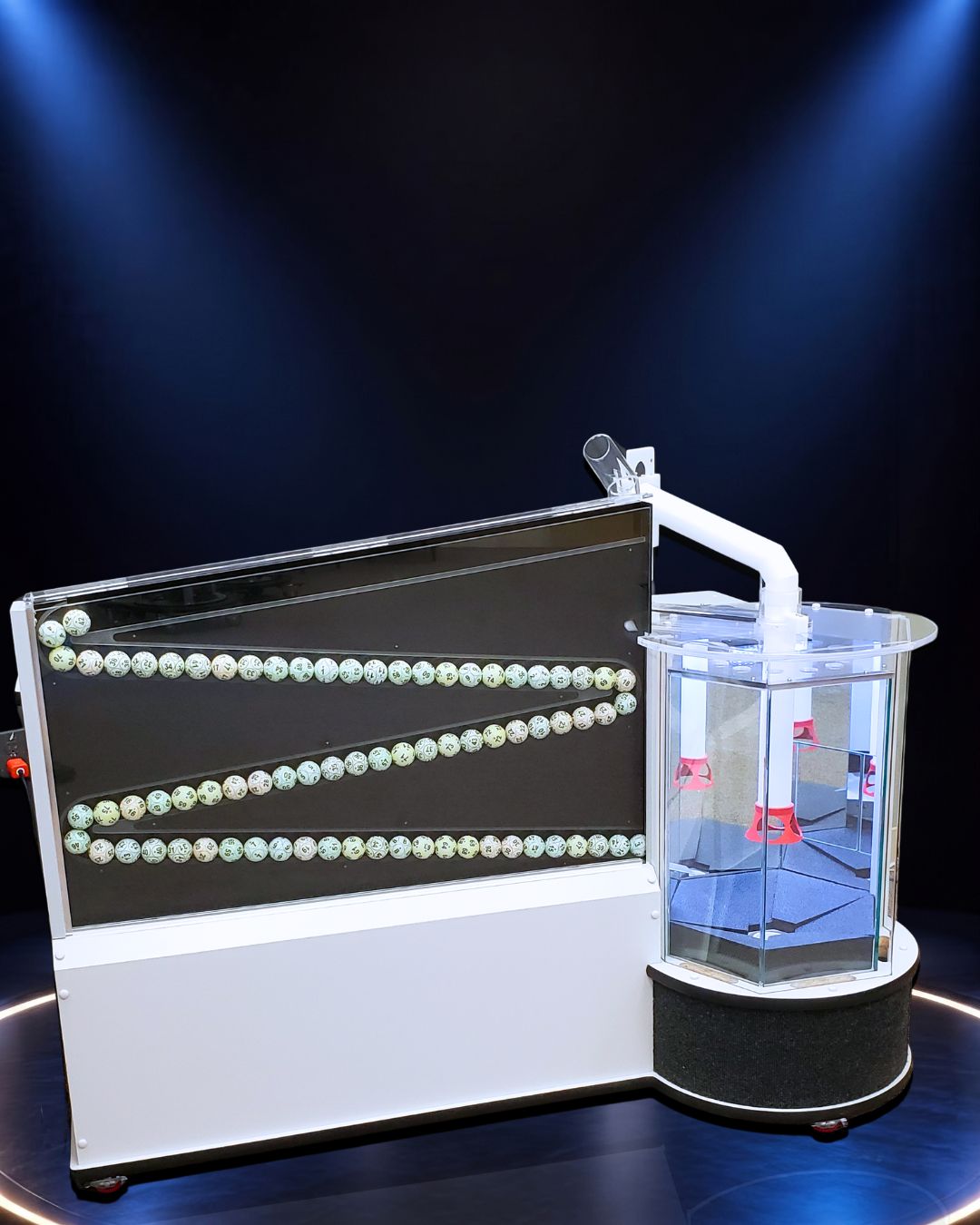

Galaxy Bingo
Flexible Interactive or RFID Automatic Bingo System
Galaxy Bingo is a low-cost bingo draw machine available in traditional interactive and fully RFID automatic models. The automatic model provides Automatic Number Recognition, programmable draw controls, and remote network operation.
- Ball size
- 1.5 in / 38 mm
- Draw capacity
- Every ball

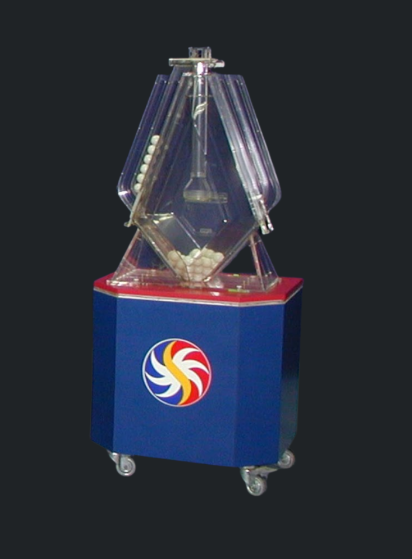

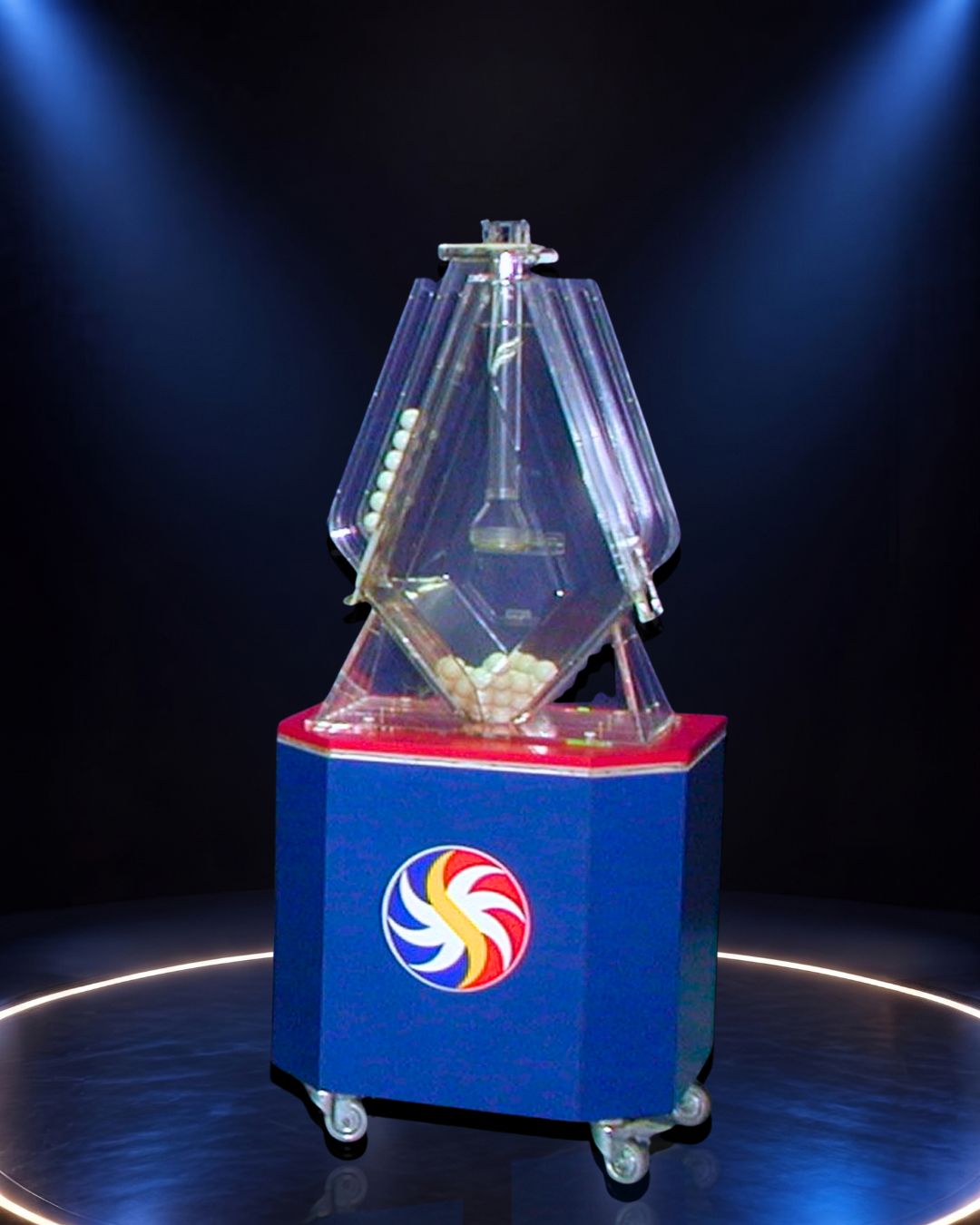

MegaGem
Rugged and Reliable Lotto Drawing Machine
The MegaGem is a rugged lotto machine developed in 1993, featuring a unique diamond-shaped chamber and interactive or automatic operation. It can display up to 52 balls and select up to 13.
- Draw capacity
- Up to 13 balls
- Ball size
- 1.5 in / 38 mm
- Interactive or automatic operation
- Microprocessor-controlled automatic operation
- Adjustable mixing duration
- Adjustable number of balls selected
- Timed interval between selected balls

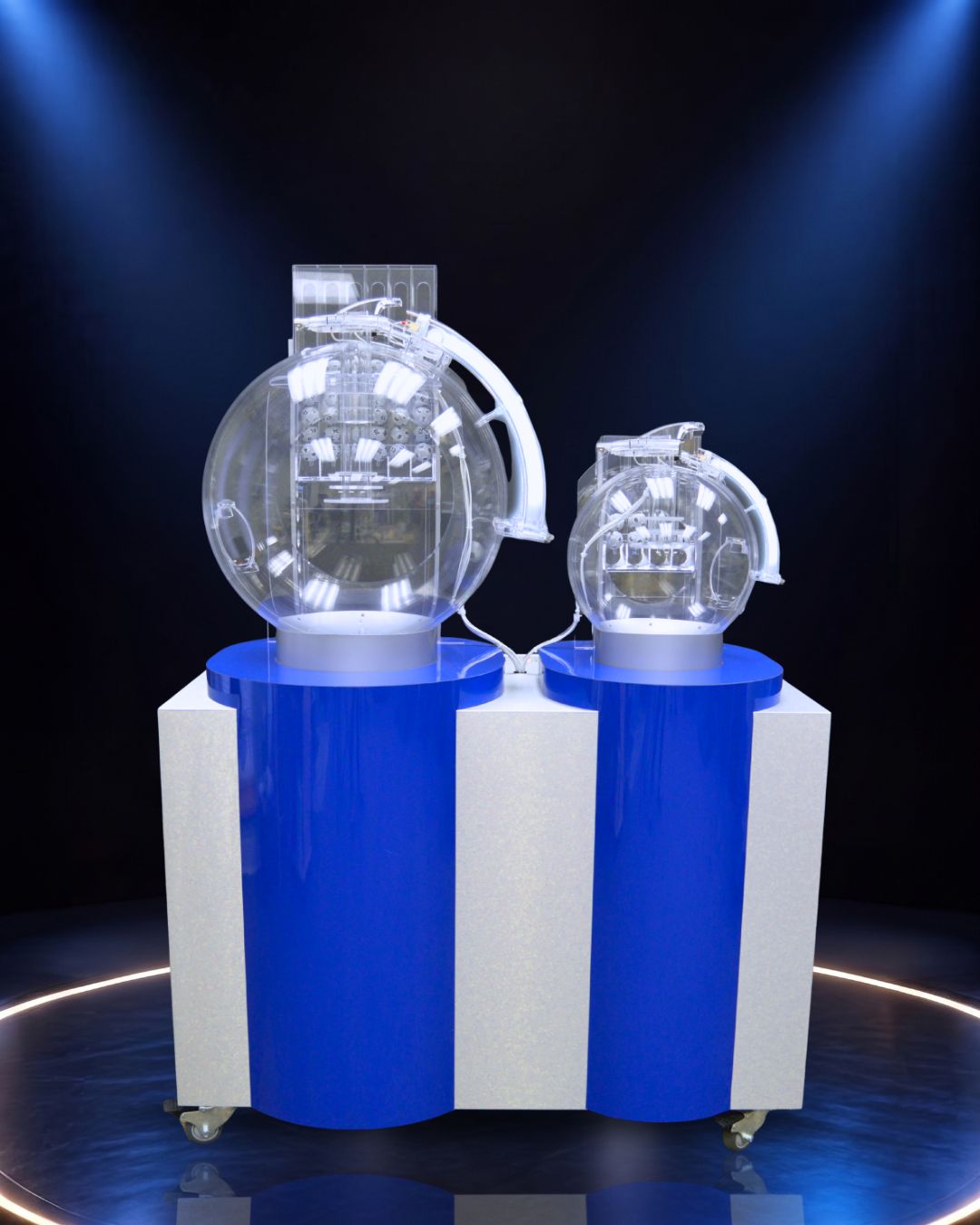

Phoenix II
Dual-Chamber Air-Mix Lottery Machine
Phoenix II is a dual-chamber air-mix lottery machine designed for flexible lottery and bonus-number applications. It can operate in interactive or automatic modes, with customizable drawing parameters and chamber configurations.
- Mix capacity
- 50 balls large chamber / up to 12 balls small chamber
- Draw capacity
- Up to 8 balls large chamber / up to 2 balls small chamber
- Ball size
- 40 mm / 1.5 in table tennis ball
- Dual-chamber design
- Interactive or automatic operation
- Microprocessor-controlled operation
- Adjustable mixing duration
- Adjustable ball selection
- Adjustable selection interval
- Illuminated chamber base
- Transparent acrylic chambers

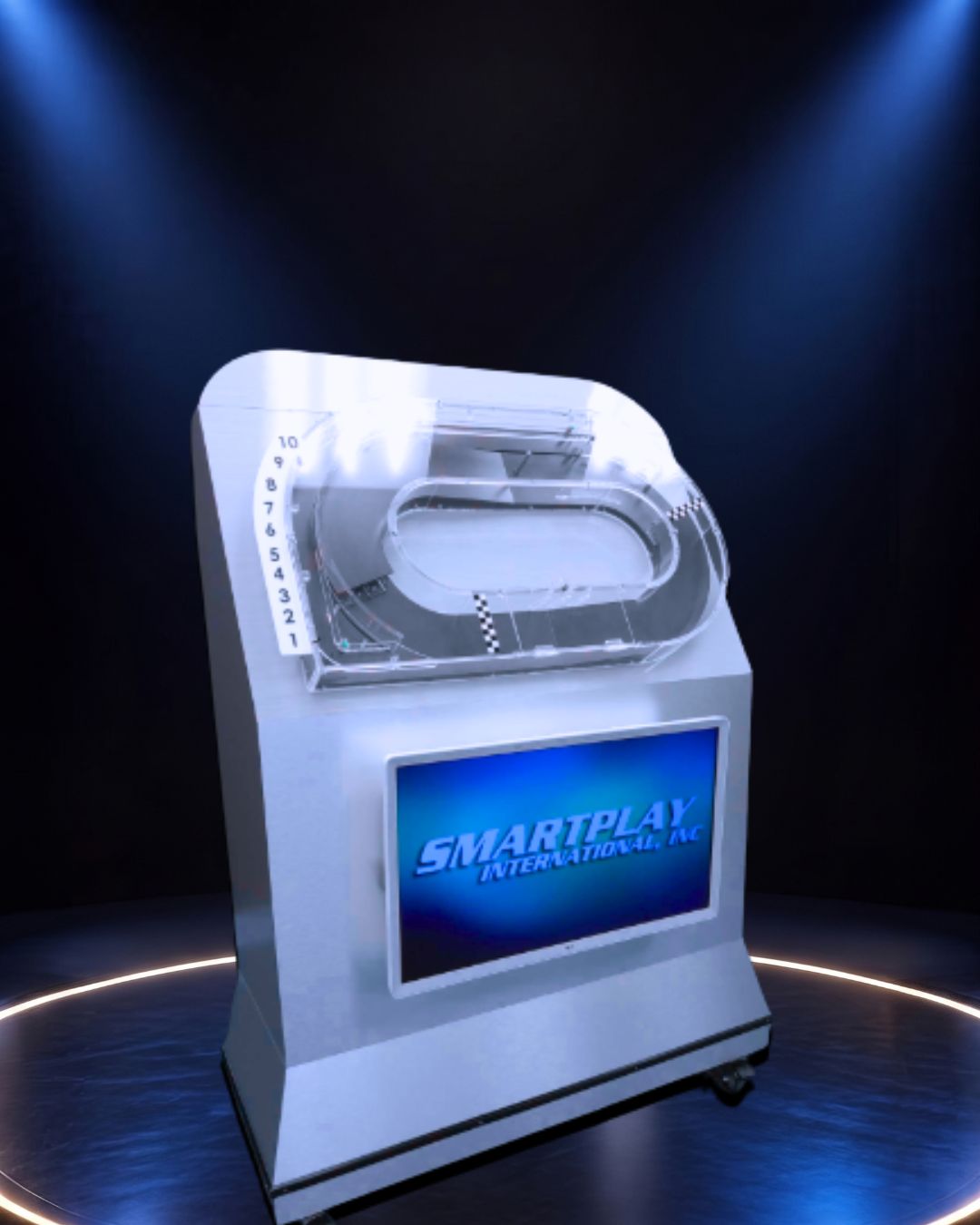

RaceTrack
High-Speed Air-Mix Lottery Drawing System
Visually engaging air-mix lottery drawing system that randomly orders up to 10 balls using high-speed air movement and automated RFID identification.
- Mix capacity
- 10 balls
- Draw capacity
- Up to 10 balls
- Ball size
- 40 mm
- High-speed air mixing
- RFID ball identification
- Automated ball presentation
- 10-ball winning display
- SmartController operation
- No physical machine switches

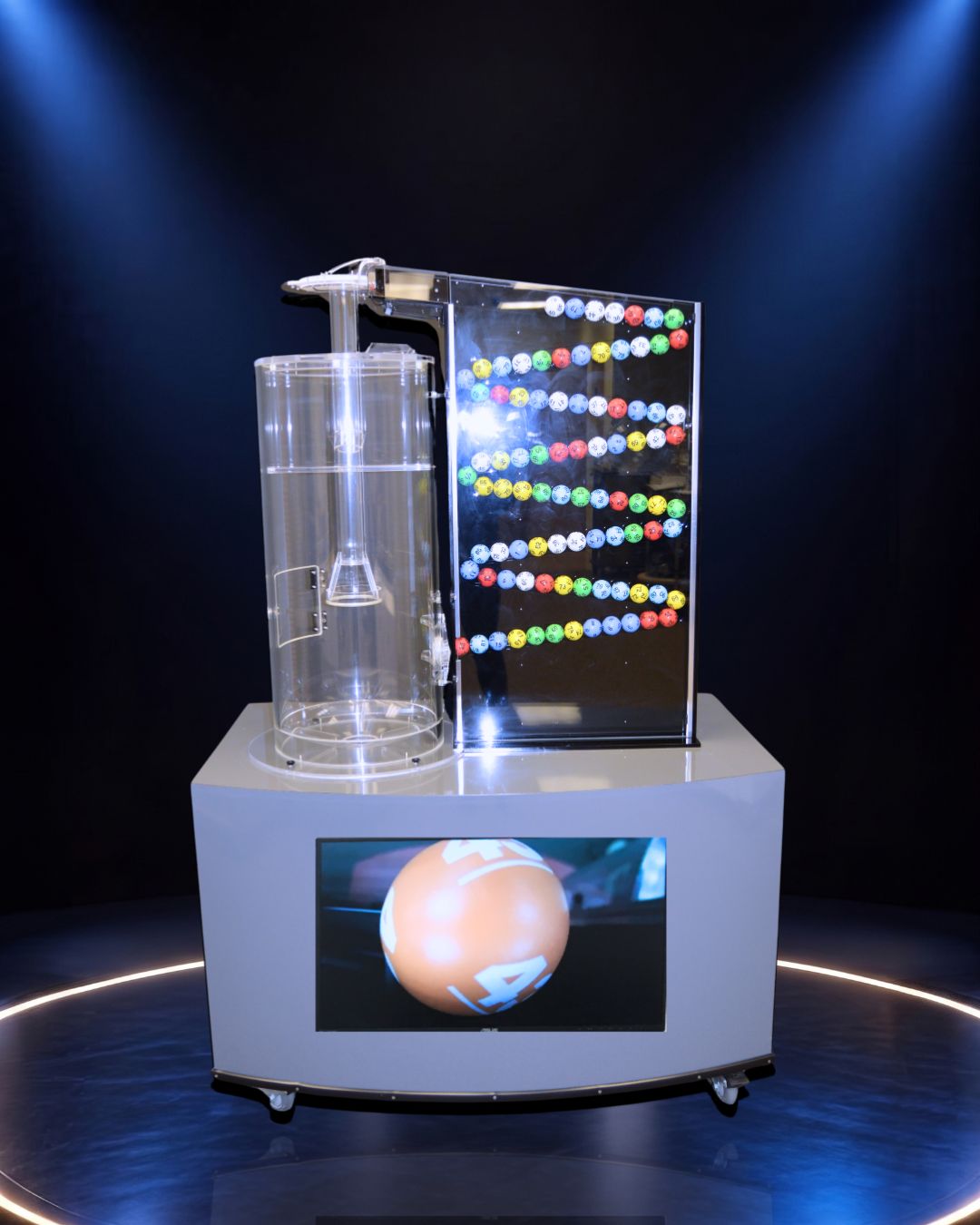

Super Bingo
Flexible Interactive or Automatic Bingo Draw Machine
Versatile bingo draw machine available in interactive or automatic operation, with adjustable drawing parameters, full-ball selection and automatic ball recycling.
- Draw capacity
- Every ball
- Ball size
- 1.5 in / 38 mm
- Interactive or automatic operation
- Microprocessor-controlled drawing
- Adjustable mixing duration
- Adjustable ball selection
- Adjustable selection interval
- Full-ball selection
- Automatic ball recycling
- Transparent acrylic chamber
- Rear ball preview tubes

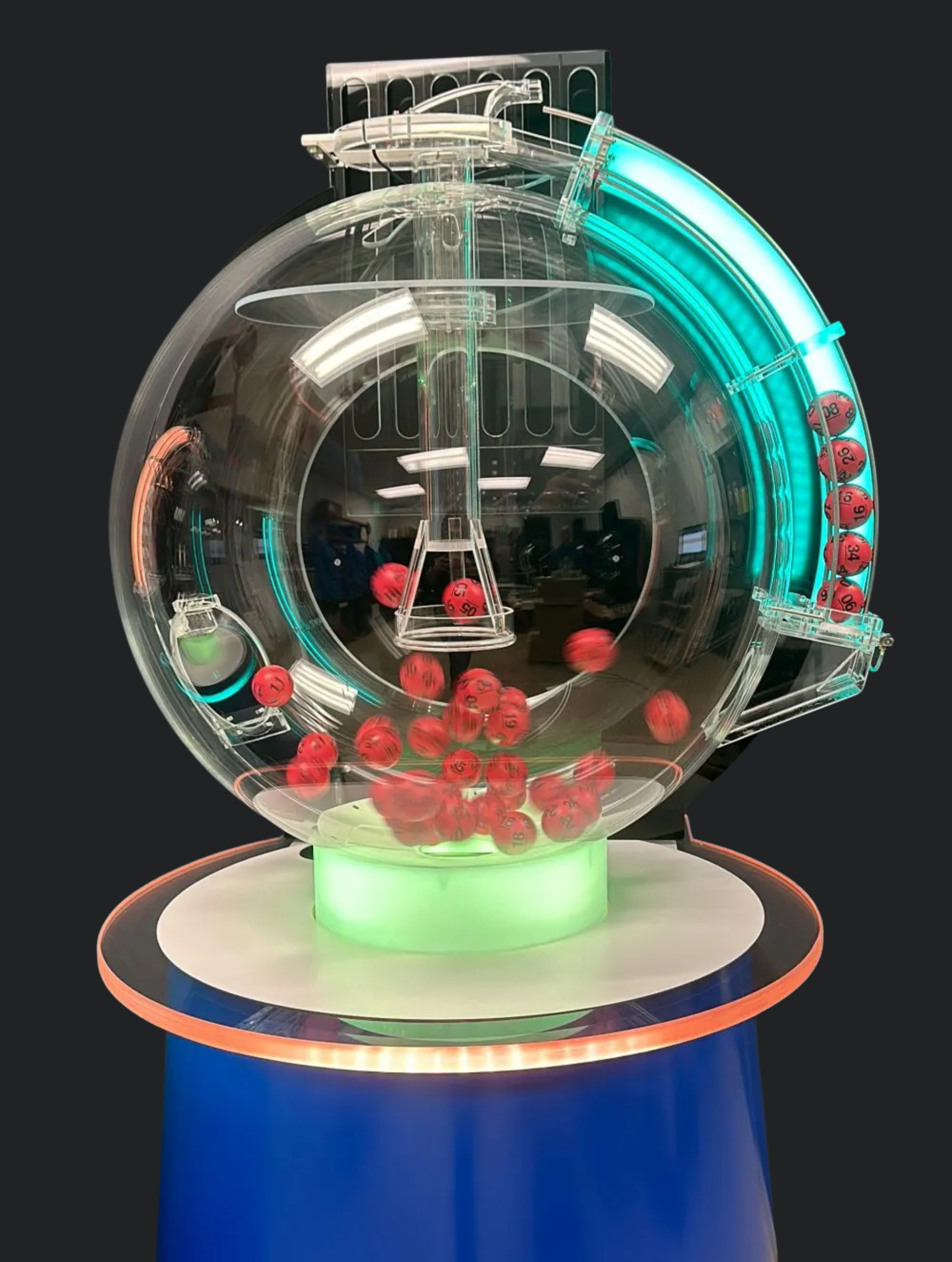

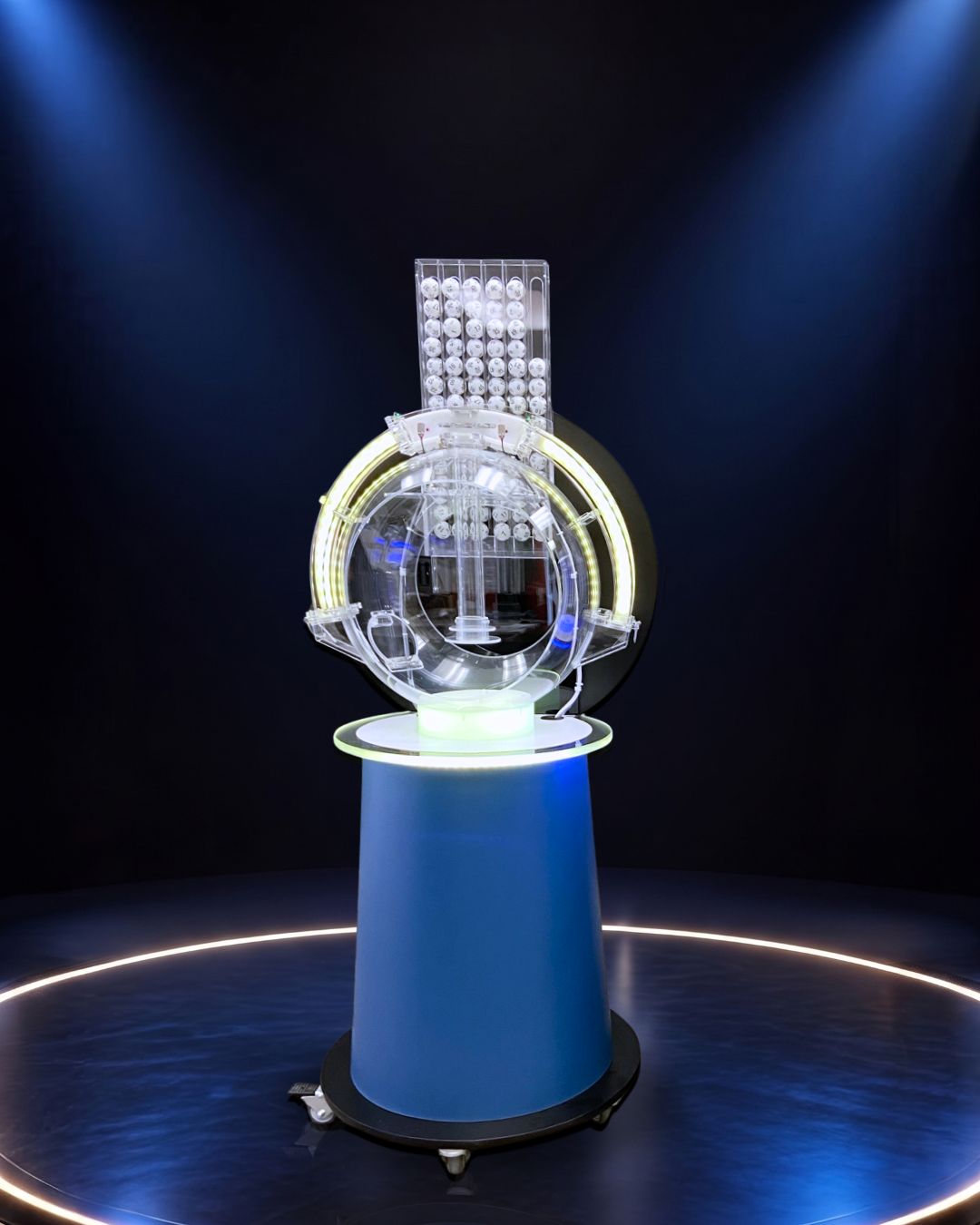

Jupiter Lotto & Keno
The industry standard.
The most widely deployed air-mix machine in the world. Used by dozens of national lotteries and casino operators for both lotto and keno game formats.
- Mix capacity
- 100
- Draw capacity
- 10 lotto / 20 keno
- Ball size
- 40 mm foam or TT
- Lotto + keno modes
- Casino-grade reliability

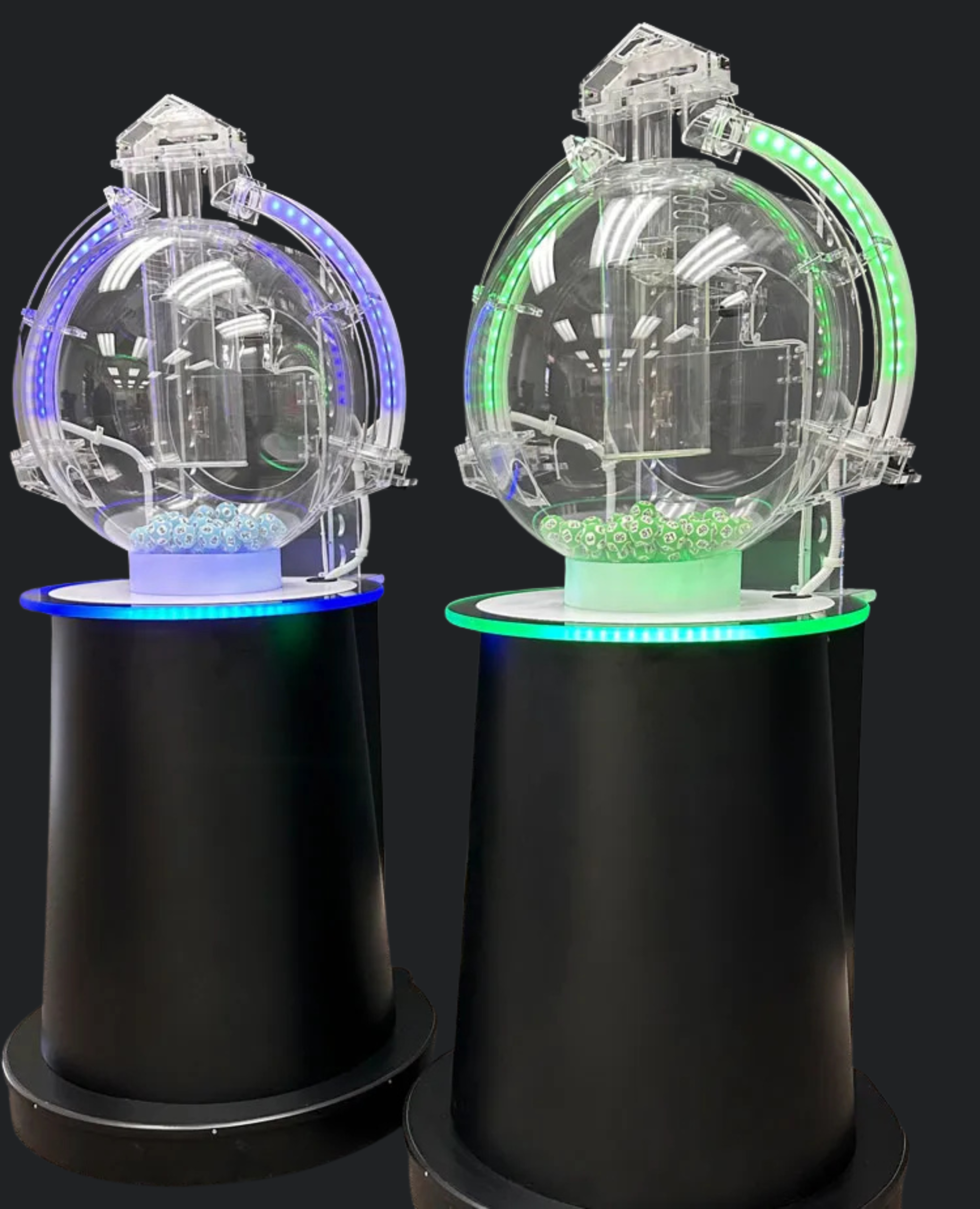

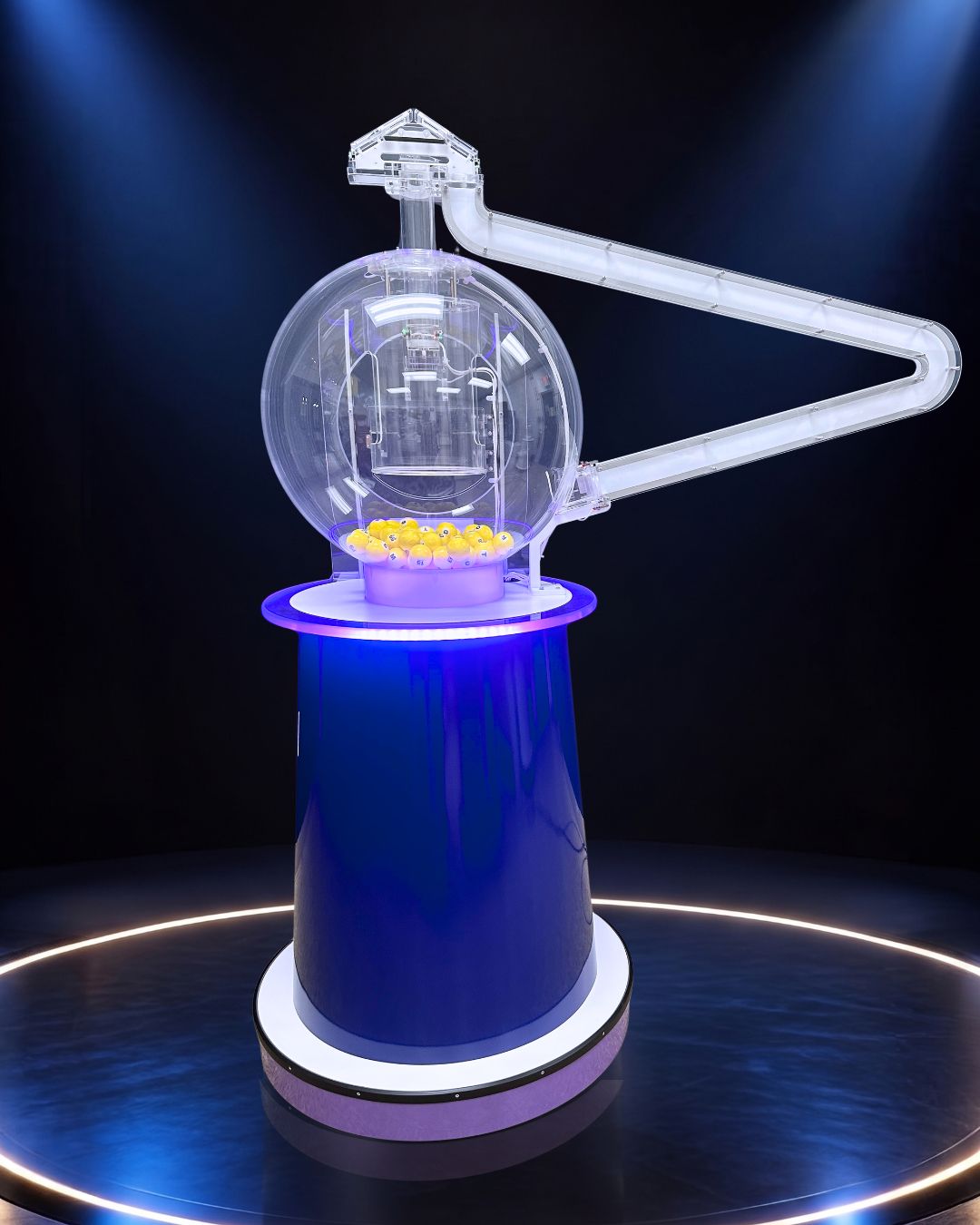

Jupiter Bolt
Built for high-frequency, automated draws.
Servo-driven evolution of the Jupiter platform. Engineered for continuous-play, automated environments — iGaming studios, high-frequency keno, fast-pick games.
- Mix capacity
- 100
- Draw capacity
- 10 / 20
- Ball size
- 40 mm foam RFID
- Servo-controlled operation
- Full automation
- RFID standard

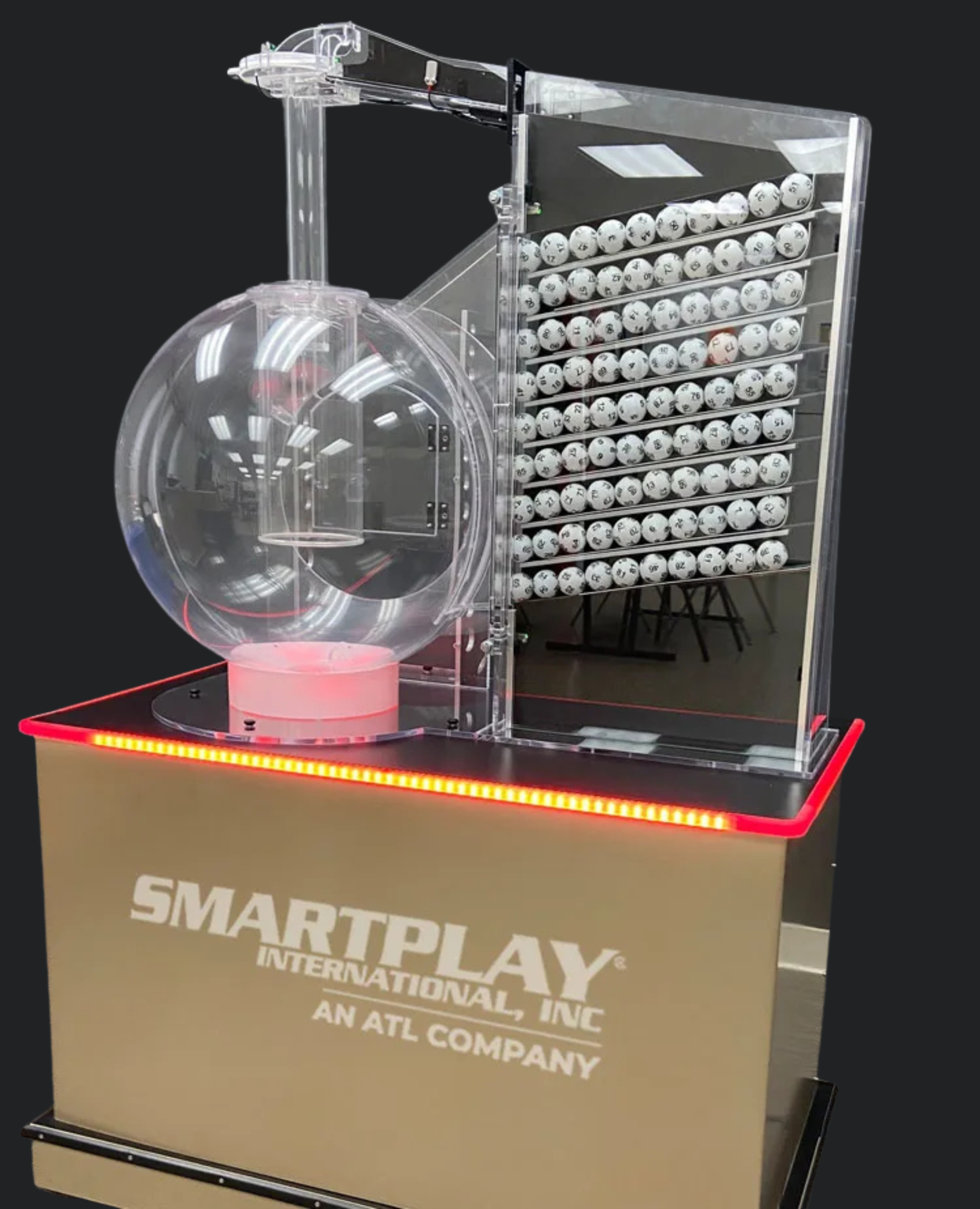

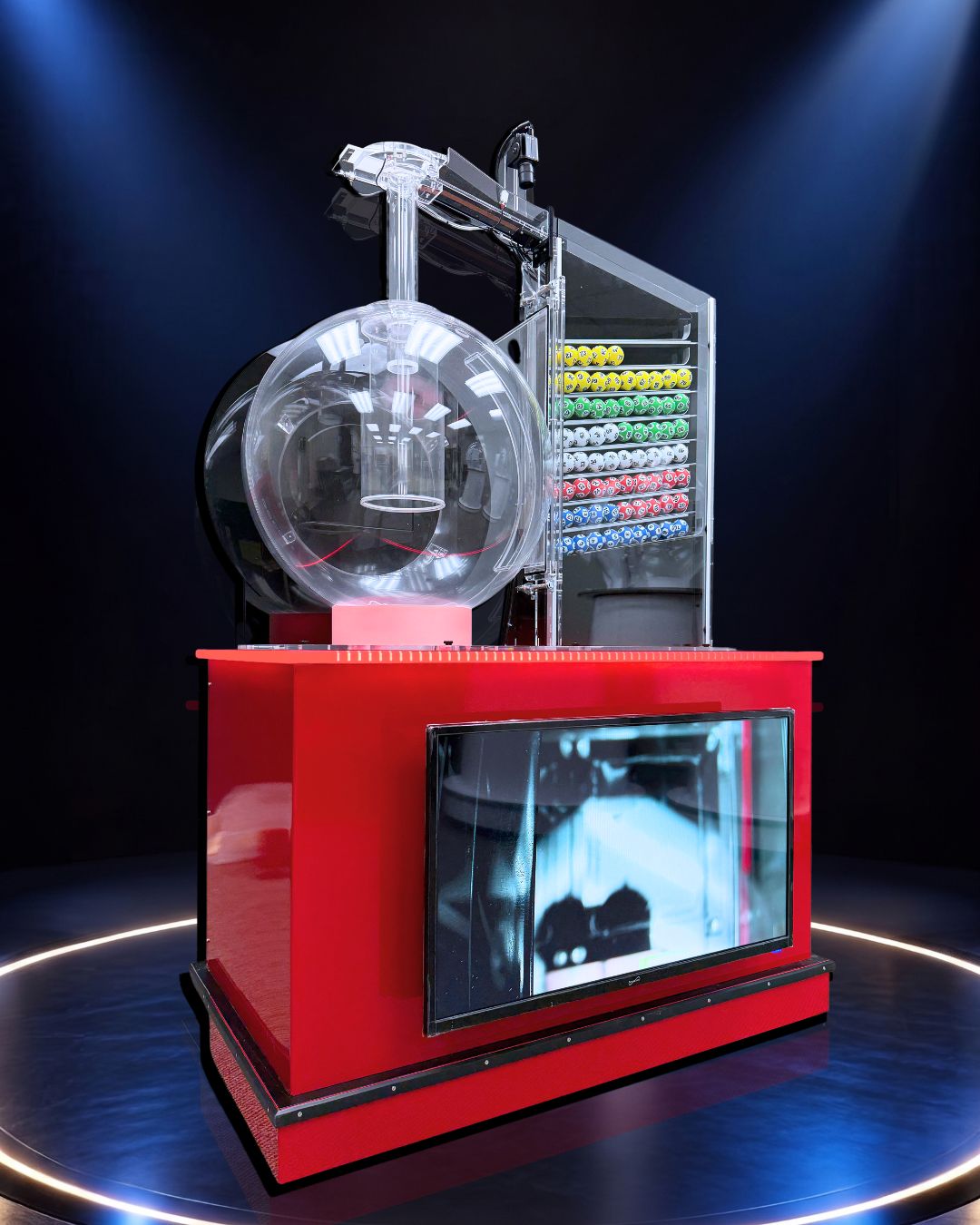

BingoFlex
Adjustable display, every game.
Flexible air-mix machine with adjustable row pins. The ball display reconfigures to match any game layout — a single platform that adapts to your game catalog.
- Mix capacity
- 100
- Draw capacity
- 100
- Ball size
- 40 mm foam or TT
- Adjustable row pins
- Reconfigurable display

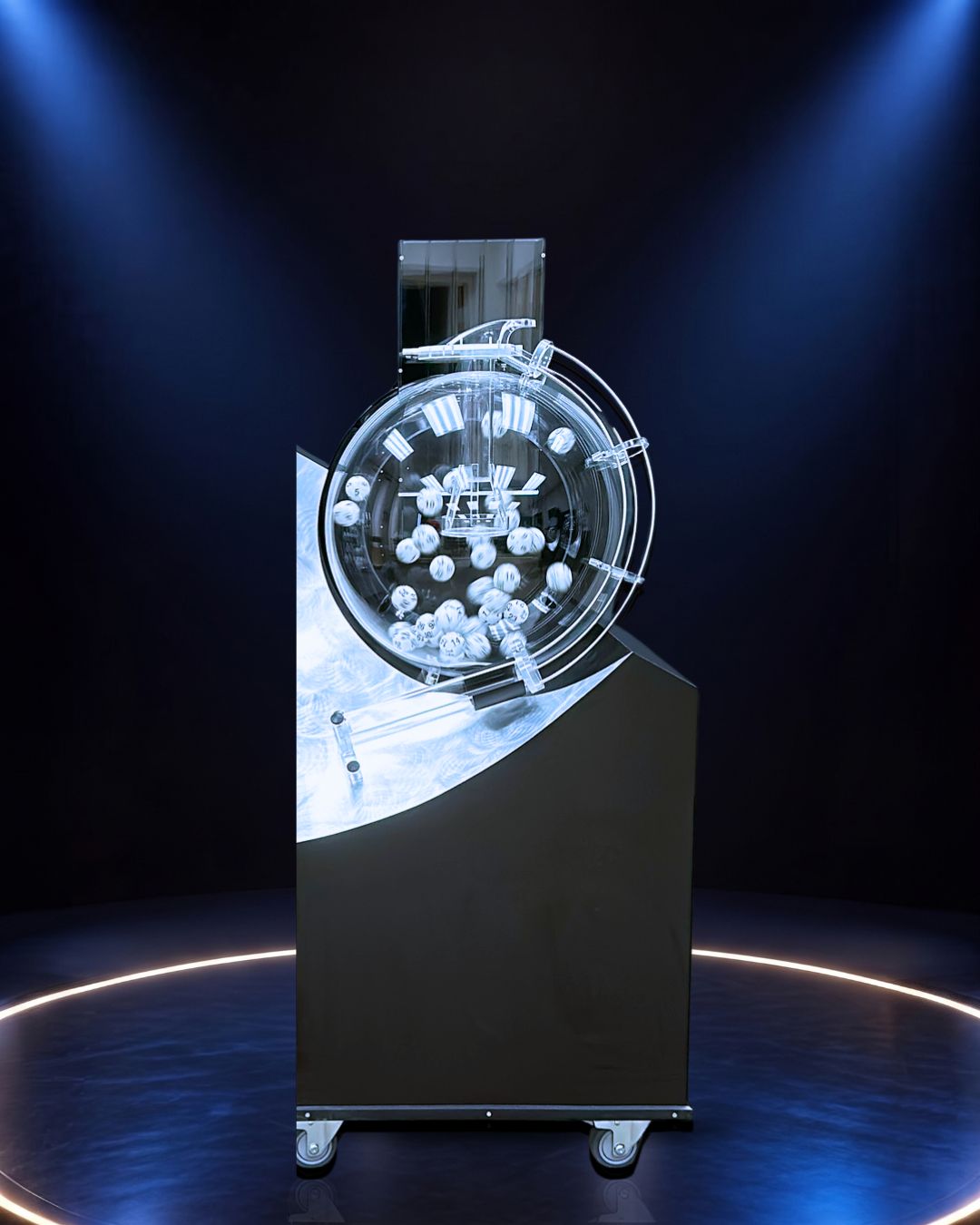

Saturn
Short-stature, every mode.
A lower-height air-mix option suitable for tight studio ceilings. Supports manual, interactive, and fully automatic operation, with optional ball recycling.
- Mix capacity
- 100
- Draw capacity
- 12
- Ball size
- 40 mm
- Manual / interactive / auto modes
- Optional recycling

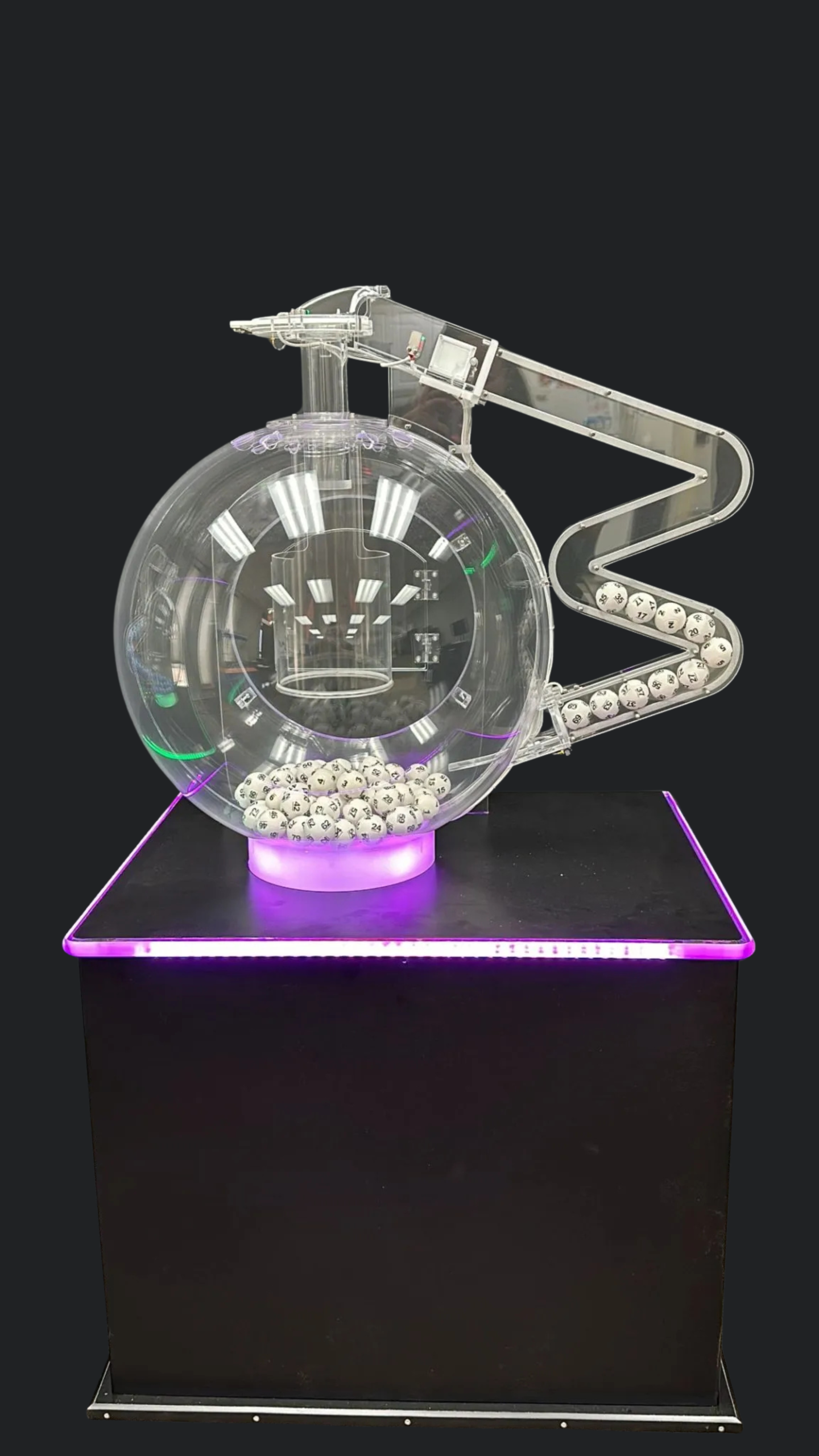

Viper Keno
Round-chamber keno with SmartController.
Round mixing chamber with a ball display trail. Includes RFID recognition and SmartController software as standard — built for high-volume keno.
- Mix capacity
- 80
- Draw + display
- 22
- Ball size
- 40 mm foam (RFID) or TT
- SmartController included
- RFID standard
- Display trail

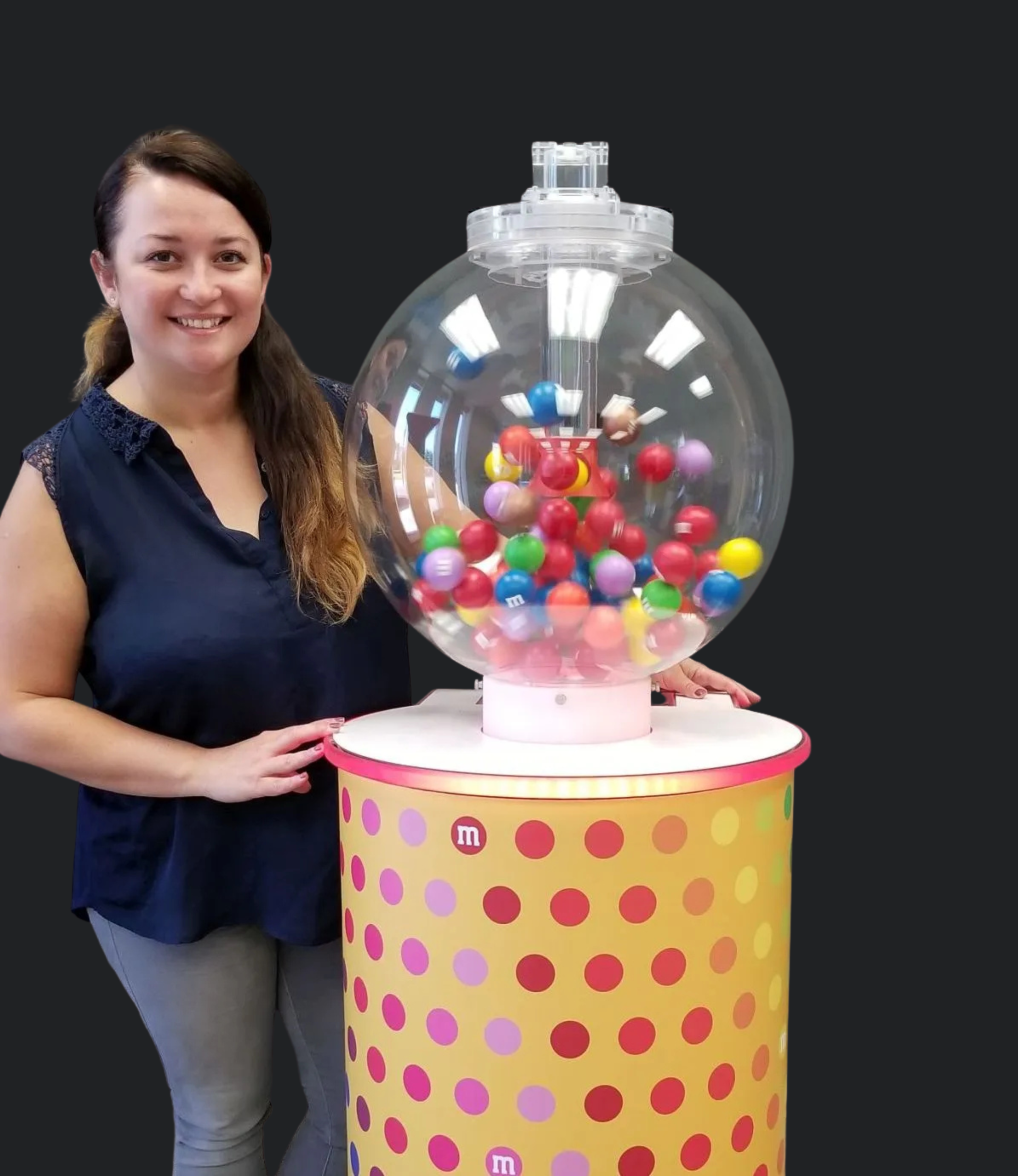

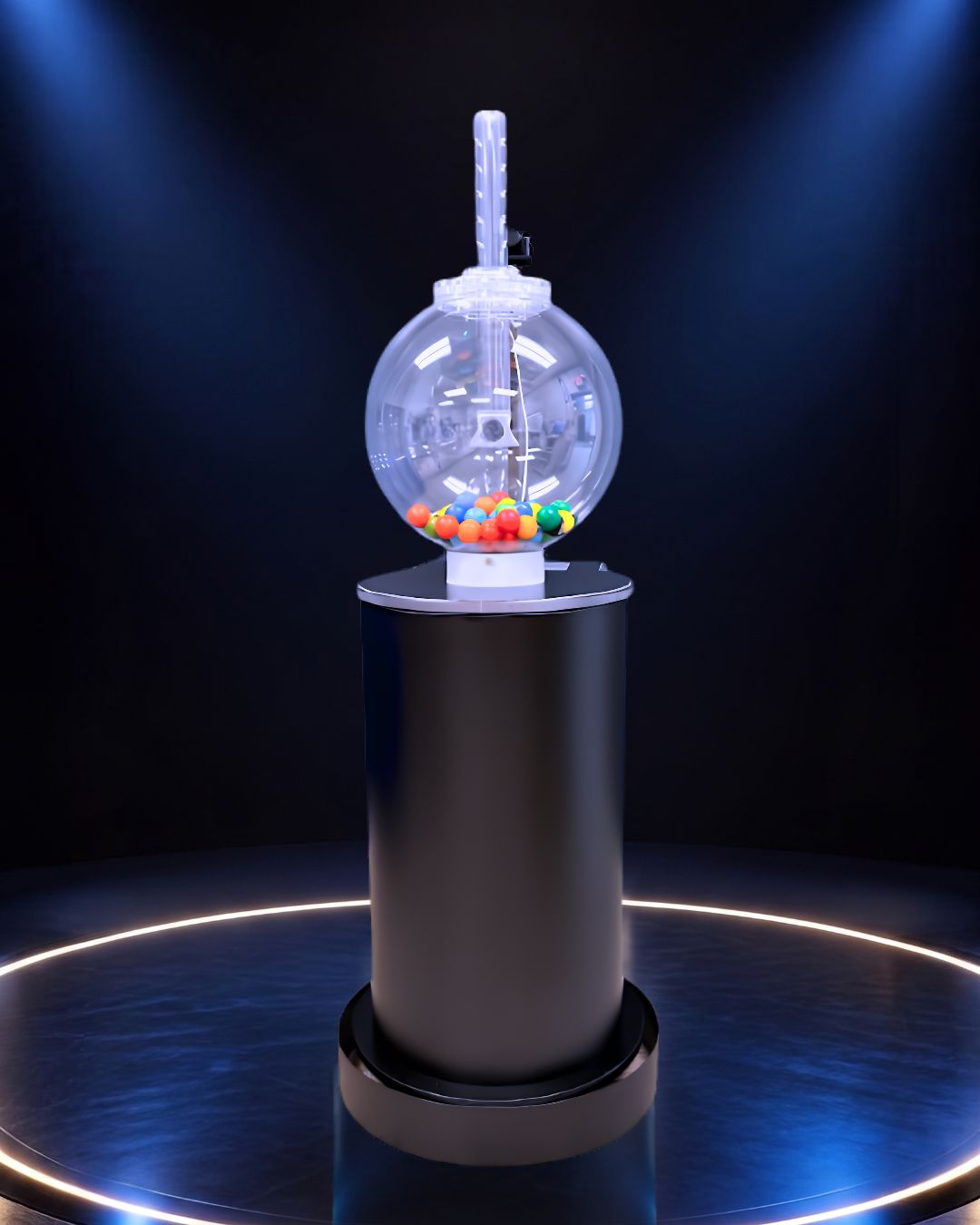

Casino Pick
The compact casino-floor draw.
Small-footprint air-mix machine designed for casino floors and trade-show promotions. Features an extendable draw tube for visible, theatrical reveals.
- Mix capacity
- 80
- Draw capacity
- 6
- Ball size
- 40 mm
- Compact casino footprint
- Extendable draw tube

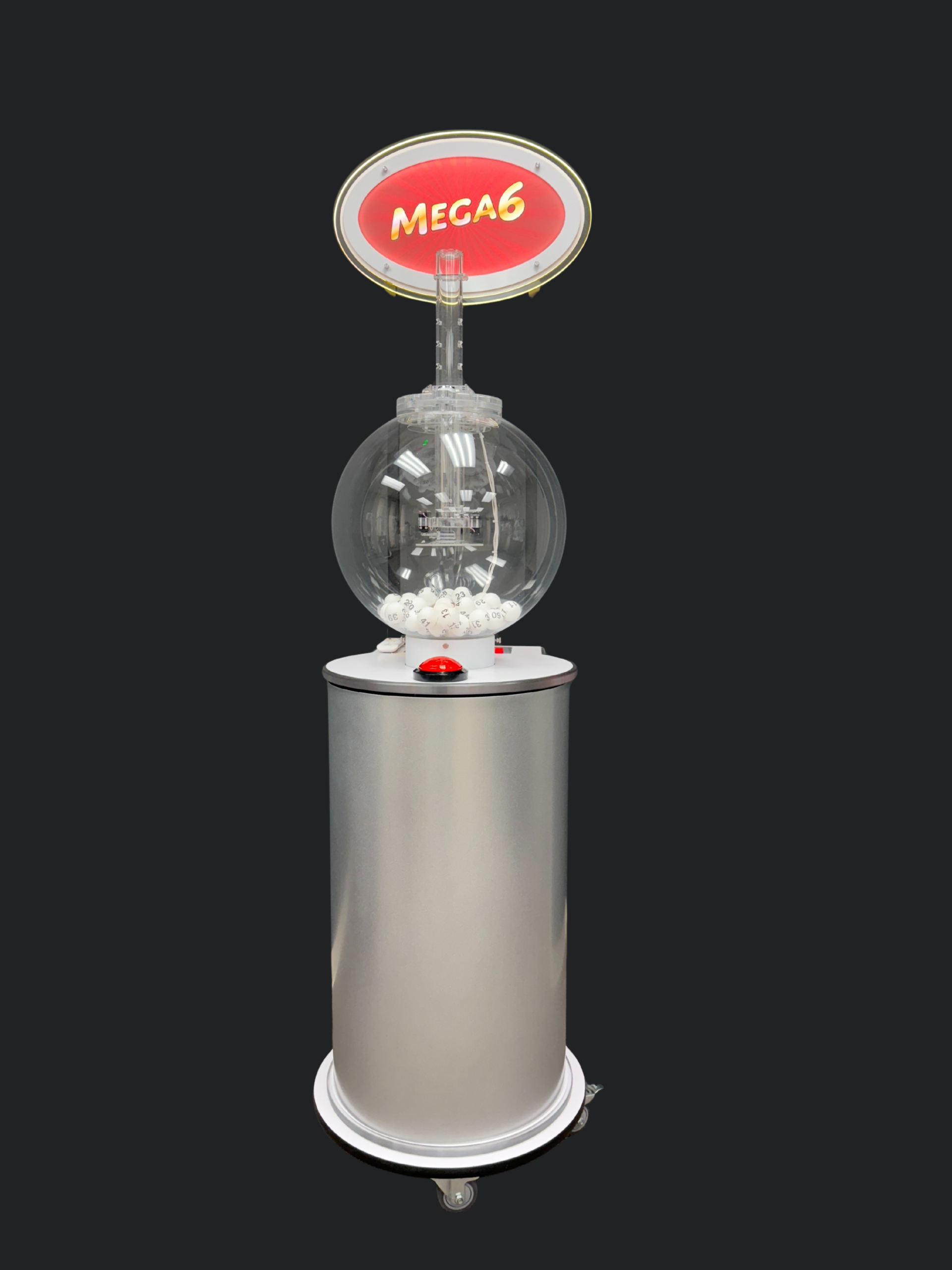

Casino Pick Mega 6
Casino Pick — supersized.
Versatile air-mix drawing machine capable of selecting 1–6 winning balls at a time, ideal for casino promotions, single-digit games, lotto draws, and special events.
- Mix capacity
- Up to 60 balls
- Draw capacity
- 1–6 balls
- Ball size
- 38 mm TT / 40 mm foam
- Variable Operation
- Select balls one at a time or all at once
- Weight
- 105 lbs (48 kg)
- Overhead signage
- LED illumination
- Promotional finish
- Player button for ball selection
- Adjustable Draw Tube
- Interactive Ball Selection
- Compact Promotional Footprint
- - Optional Remote Control

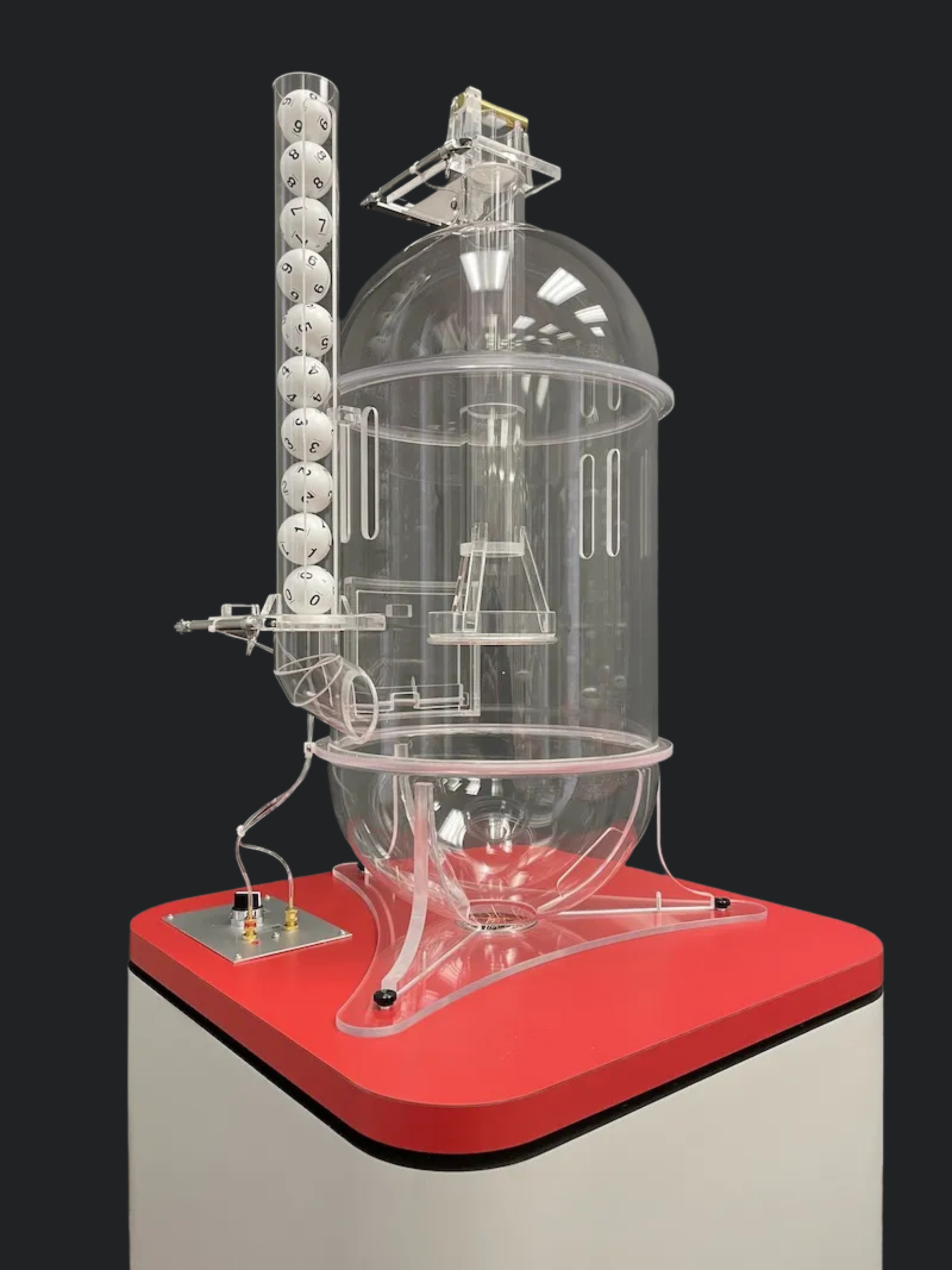

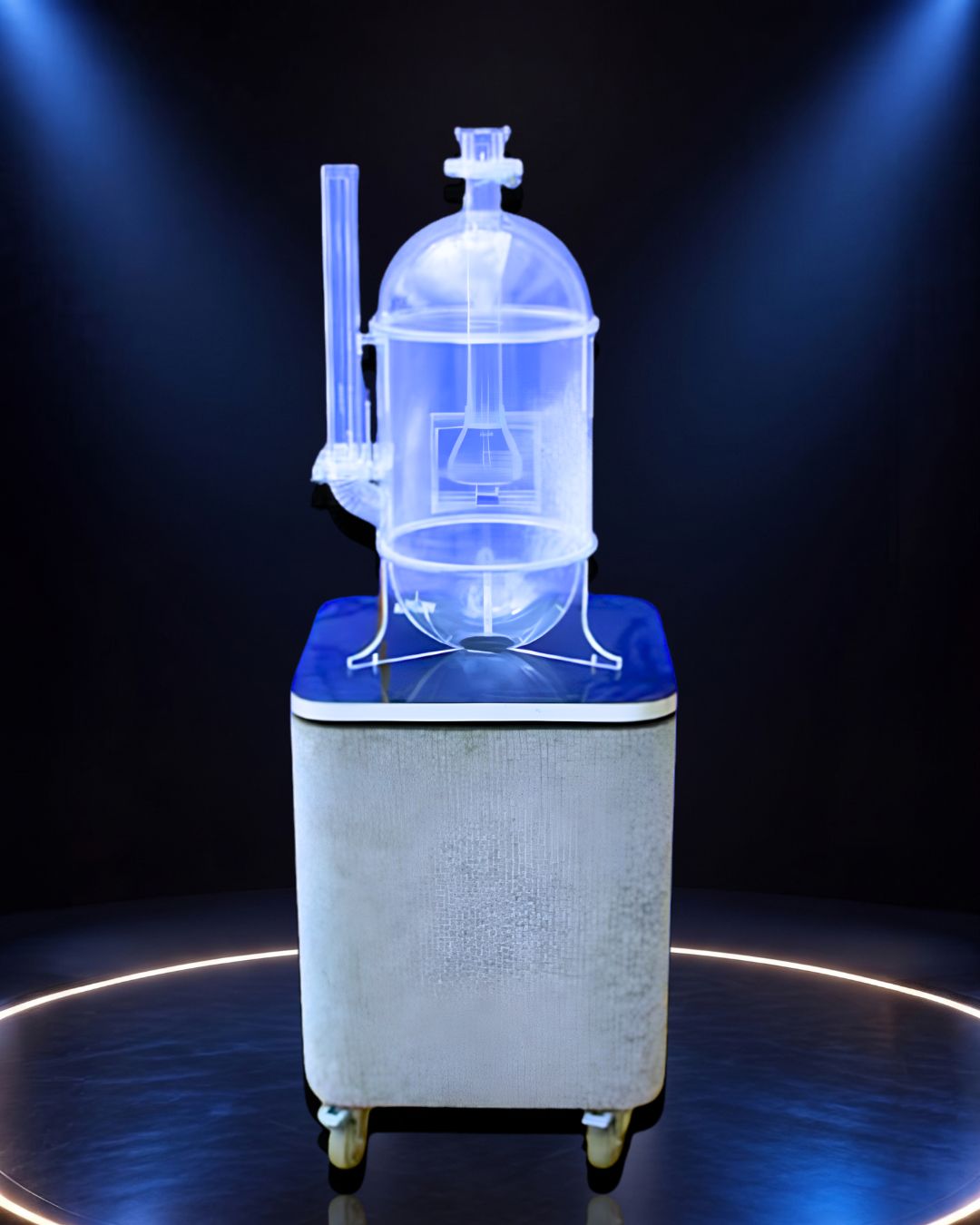

Standard Daily
The Pick-3 and Pick-4 capsule.
The world-recognized capsule-shaped daily machine. Most commonly deployed in multiples for Pick 3 / Pick 4 games, paired with the Smartplay Control Console.
- Mix per chamber
- 30
- Draw capacity
- 1 ball (display 10)
- Ball size
- 40 mm
- Pick 3 / Pick 4 standard
- Pairs with Control Console

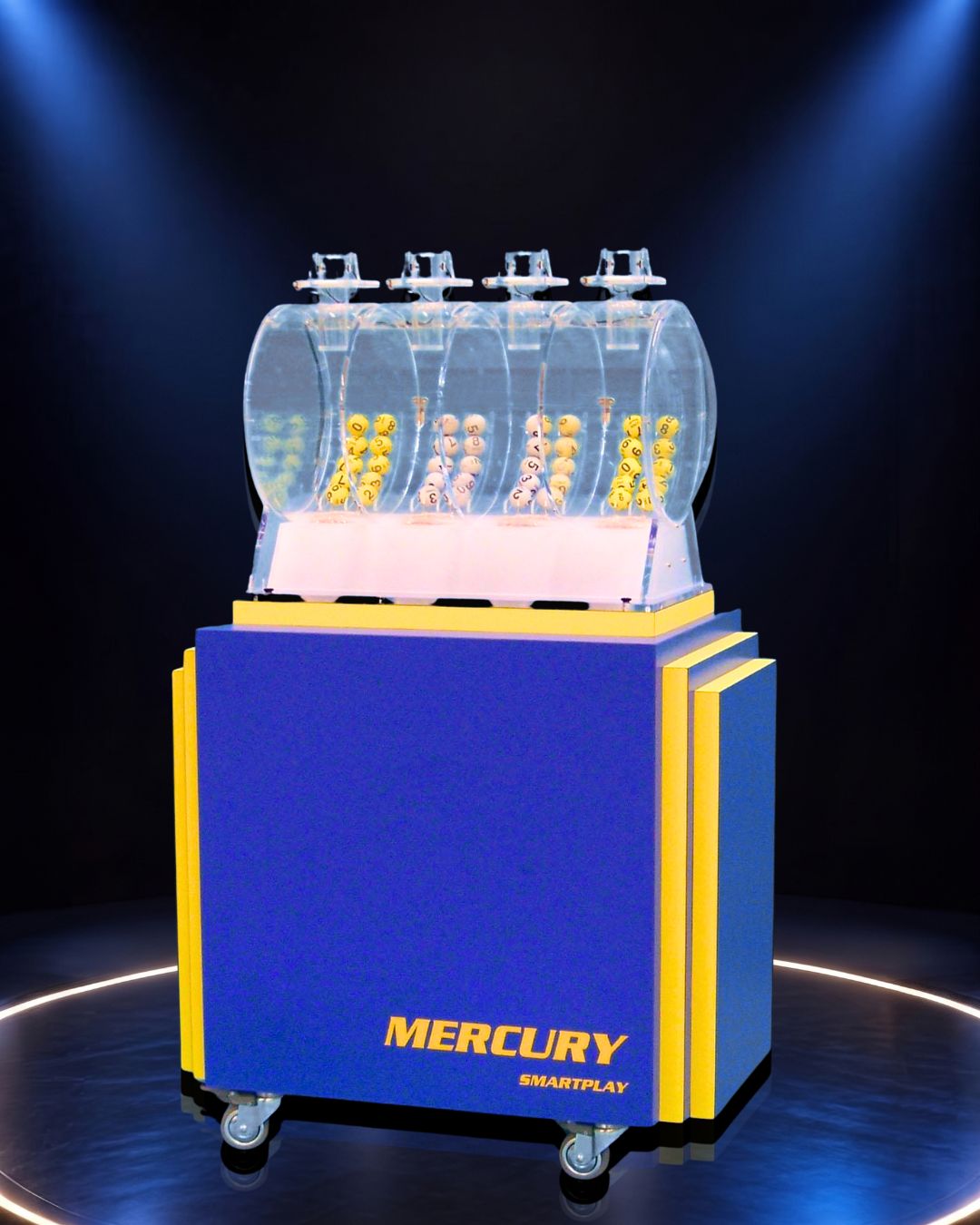

Mercury Single Digit
Shallow chamber, faster draws.
Rounded shallow mixing chamber that optimizes ball turnover speed. Built for high-frequency single-digit games where every second matters.
- Chambers
- 1 – 8
- Mix capacity
- 10 per chamber
- Ball size
- 40 mm
- High-frequency draws
- Shallow mix chamber

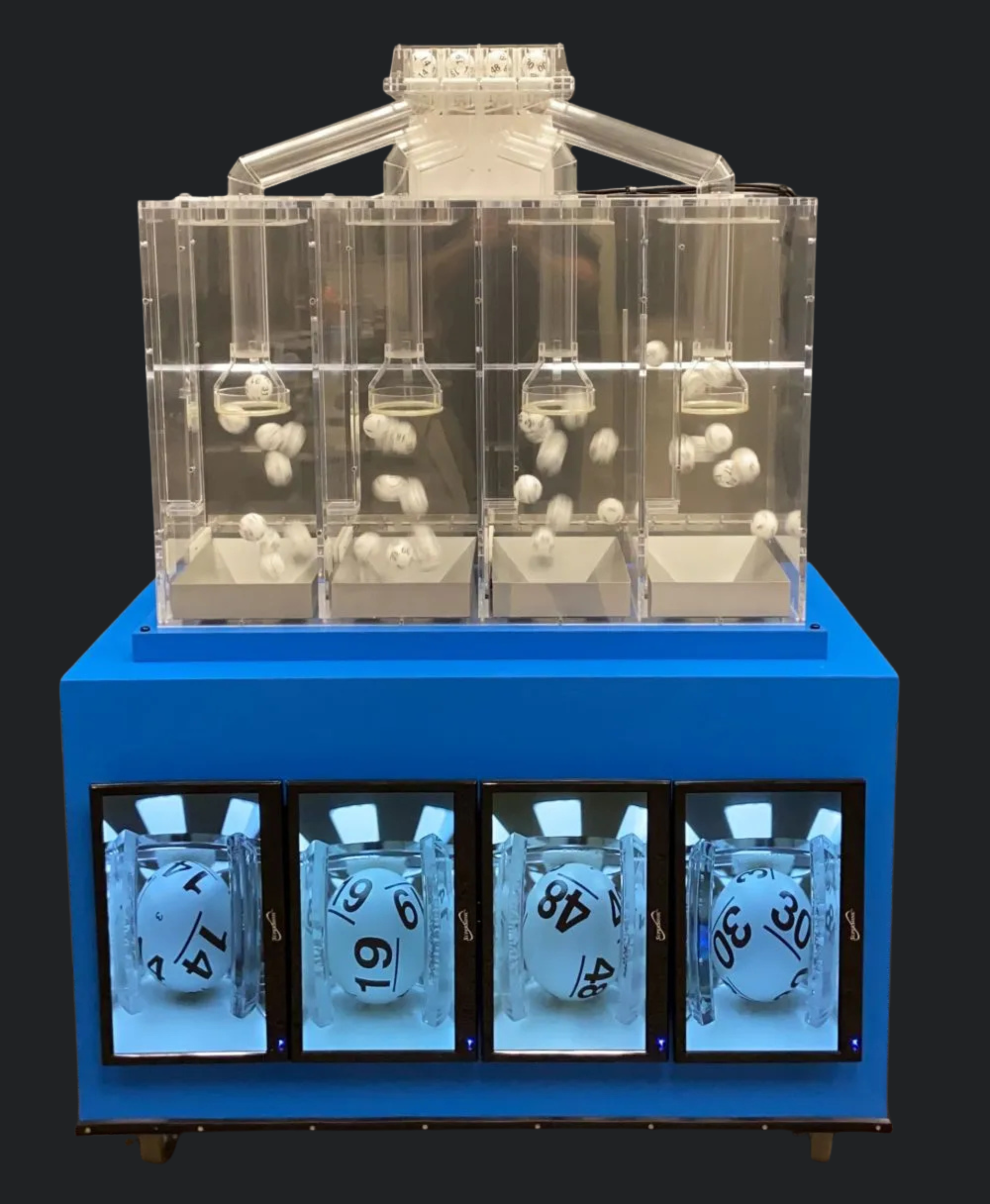

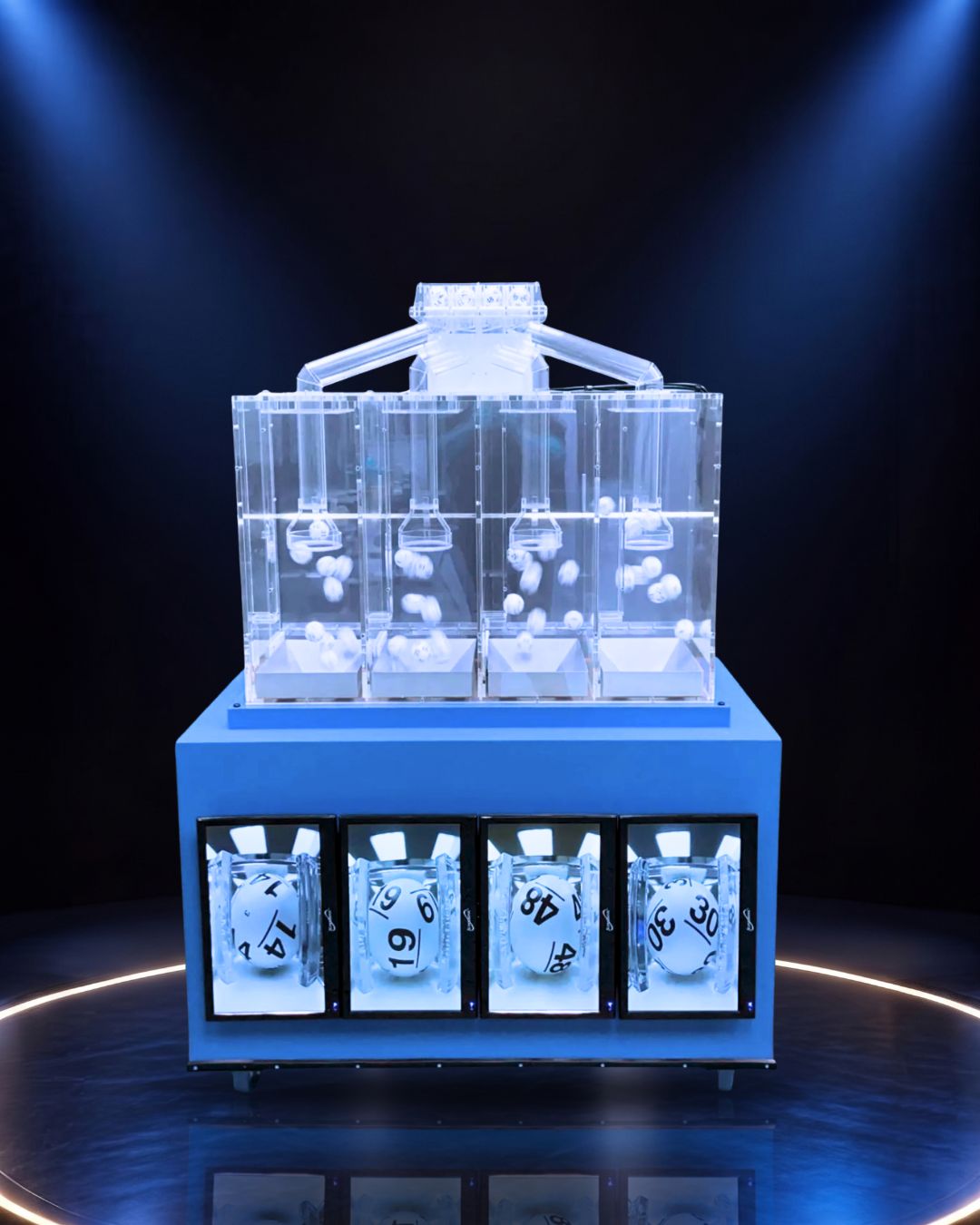

MultiPick Single Digit
Customizable digits, letters, or symbols.
A globally deployed single-digit platform with customizable chamber count. Supports numeric games and games with letters or custom symbols.
- Chambers
- 1 – 8
- Mix capacity
- 10+ per chamber
- Ball size
- 40 mm
- Custom symbols / letters
- Scalable chamber count

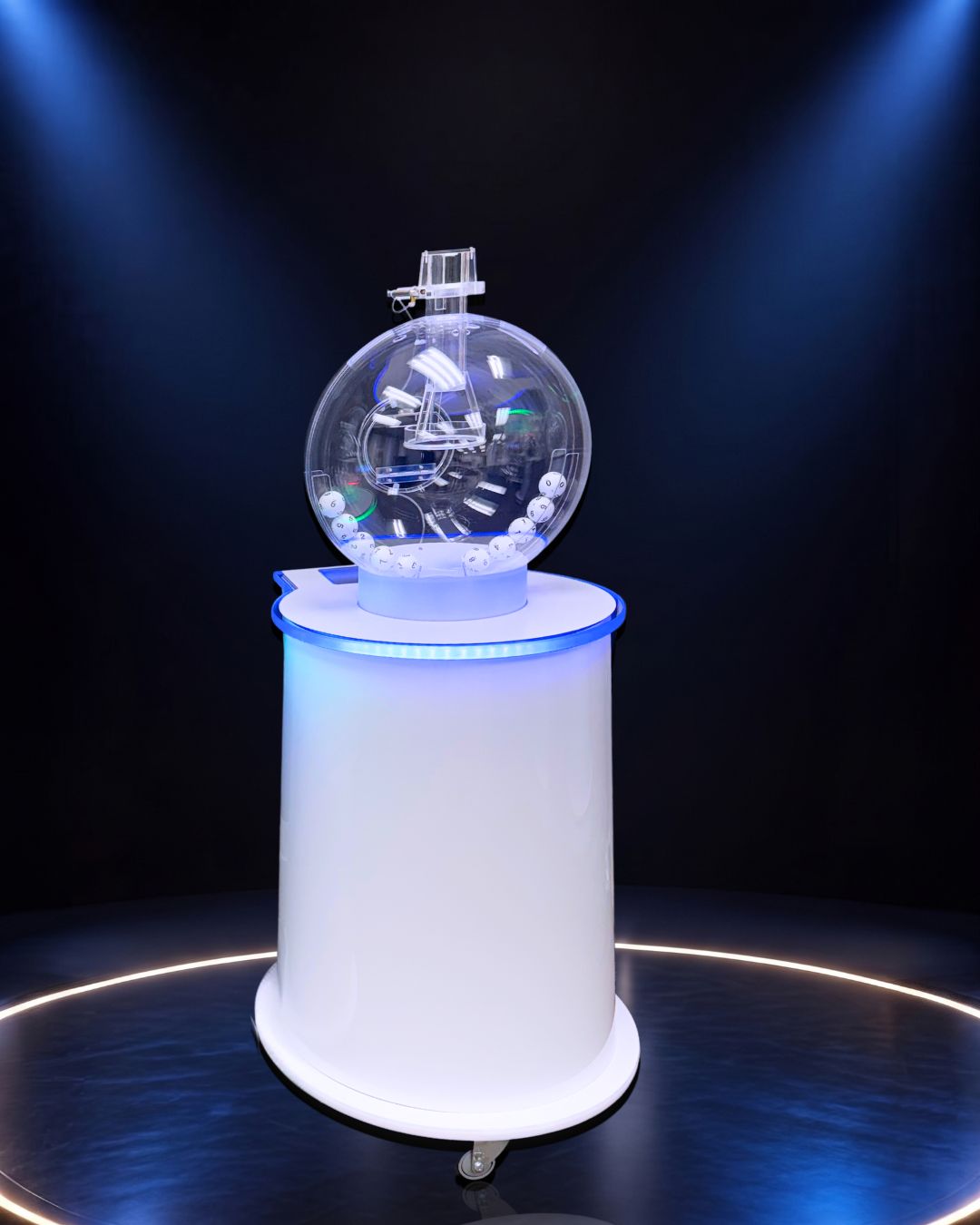

Neptune Single Digit
Versatile multi-digit and bonus draws.
Single-digit machine engineered for fast ball return to its chamber. Equally suited to multi-digit number games and stand-alone bonus-ball pulls.
- Mix capacity
- 10 per chamber
- Draw capacity
- 1 ball
- Ball size
- 40 mm
- Quick ball return
- Multi-digit ready

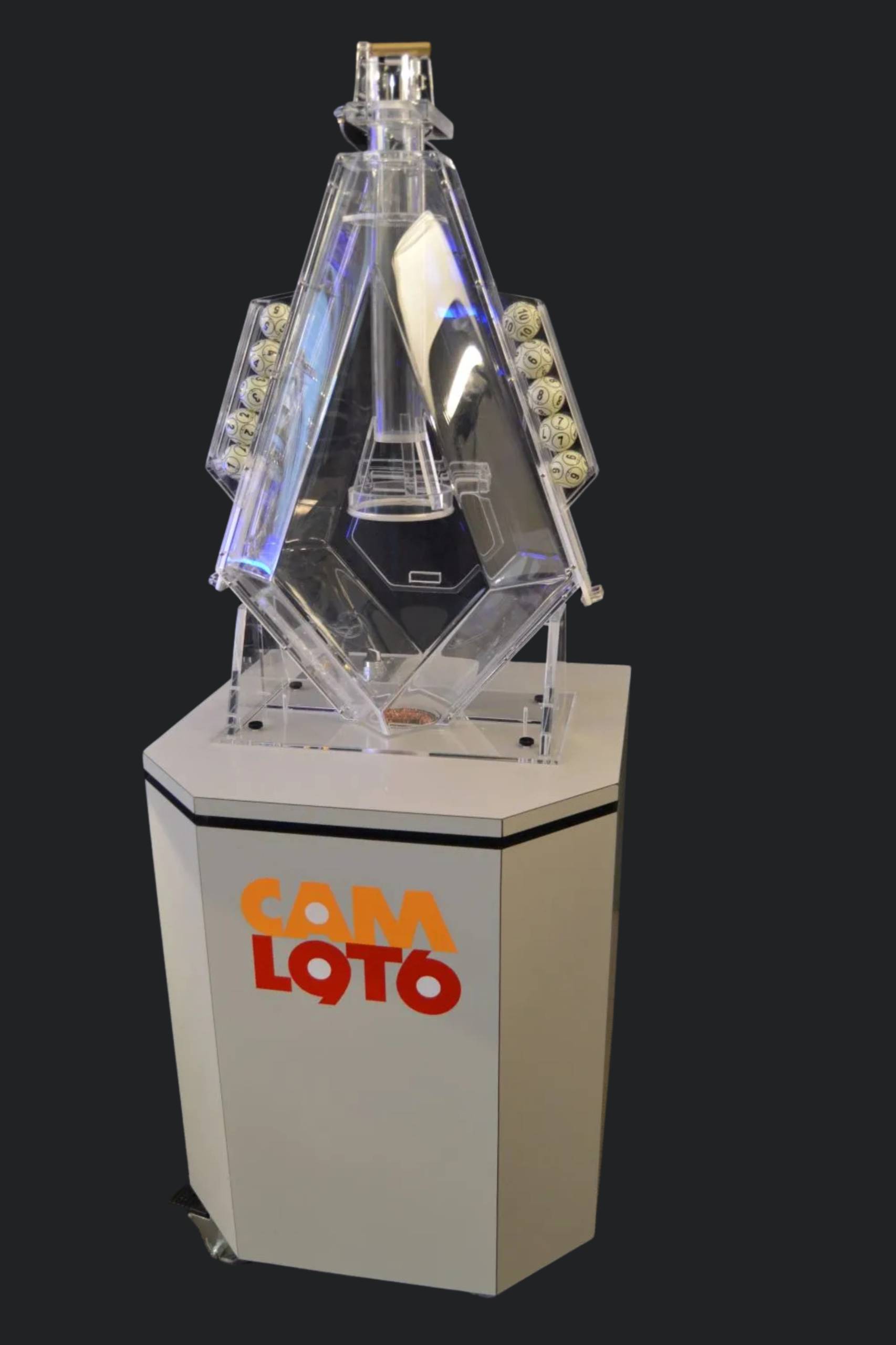

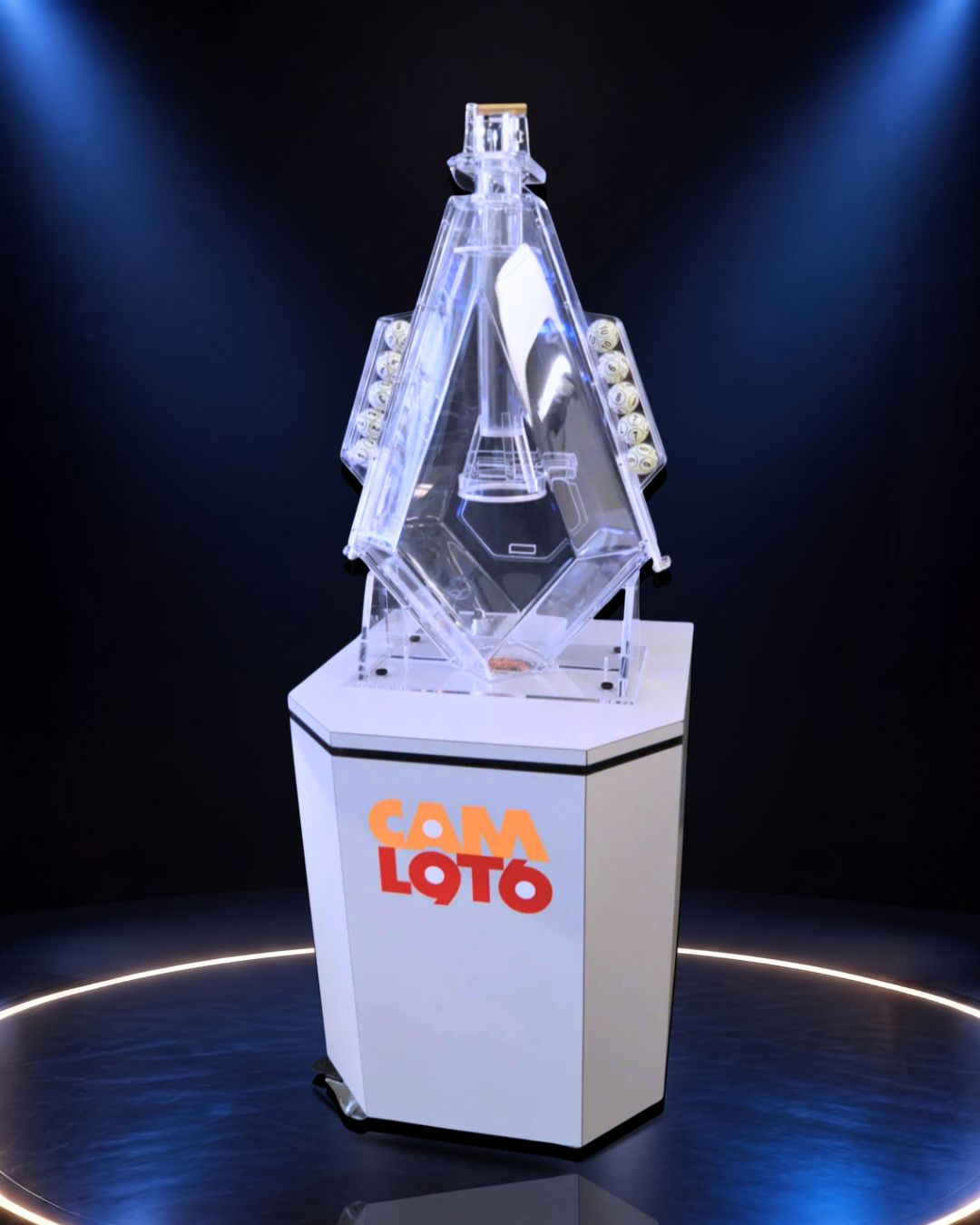

Gem Single Digit
Diamond-shaped mix chamber.
Diamond-shaped mixing chamber for 3-digit, 4-digit, joker, and bonus-ball games. Distinctive geometry adds visual interest to broadcast draws.
- Mix capacity
- 10
- Draw capacity
- 1 ball
- Ball size
- 40 mm
- Diamond geometry
- 3D / 4D / joker games
Mechanical mix lottery machines.

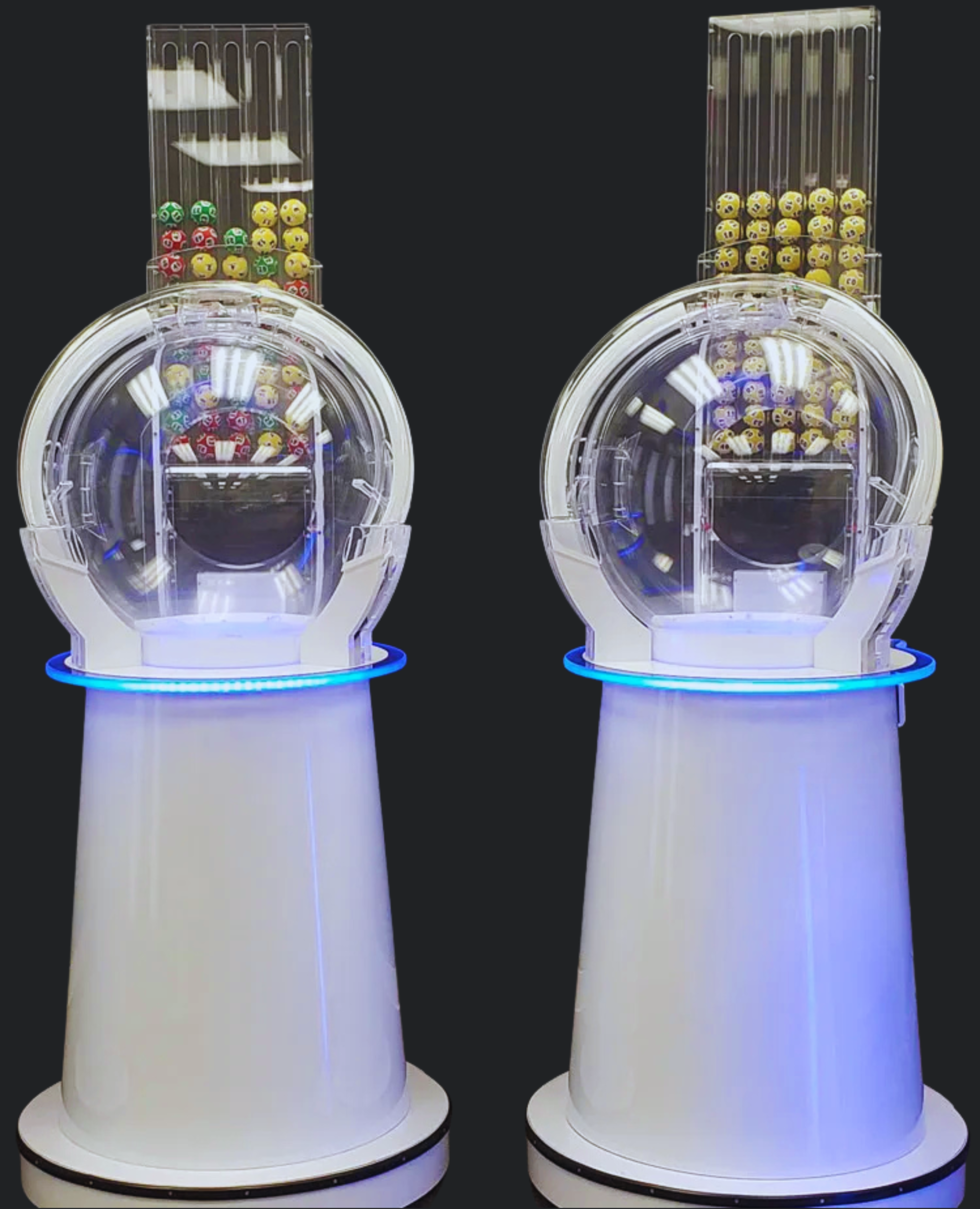

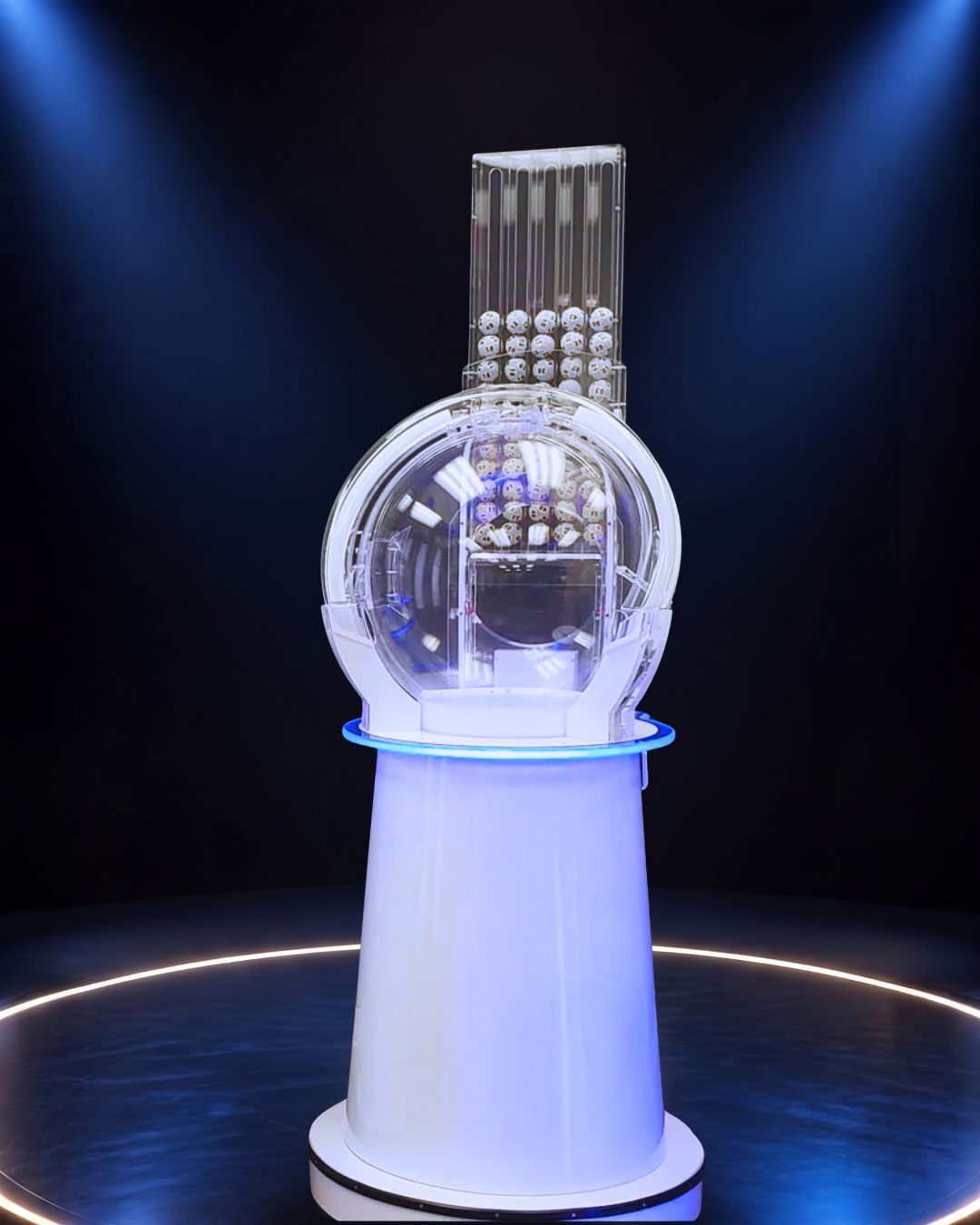

Halogen®
The Powerball machine.
The flagship gravity-mix model trusted by Powerball USA and lotteries in Australia, New Zealand, Hong Kong, and the United Kingdom. Built for the most-watched draws on the planet.
- Mix capacity
- 100
- Draw capacity
- 10 lotto / 20 keno
- Ball size
- 50 mm foam
- RFID ball recognition
- Custom LED lighting
- Green-screen backer

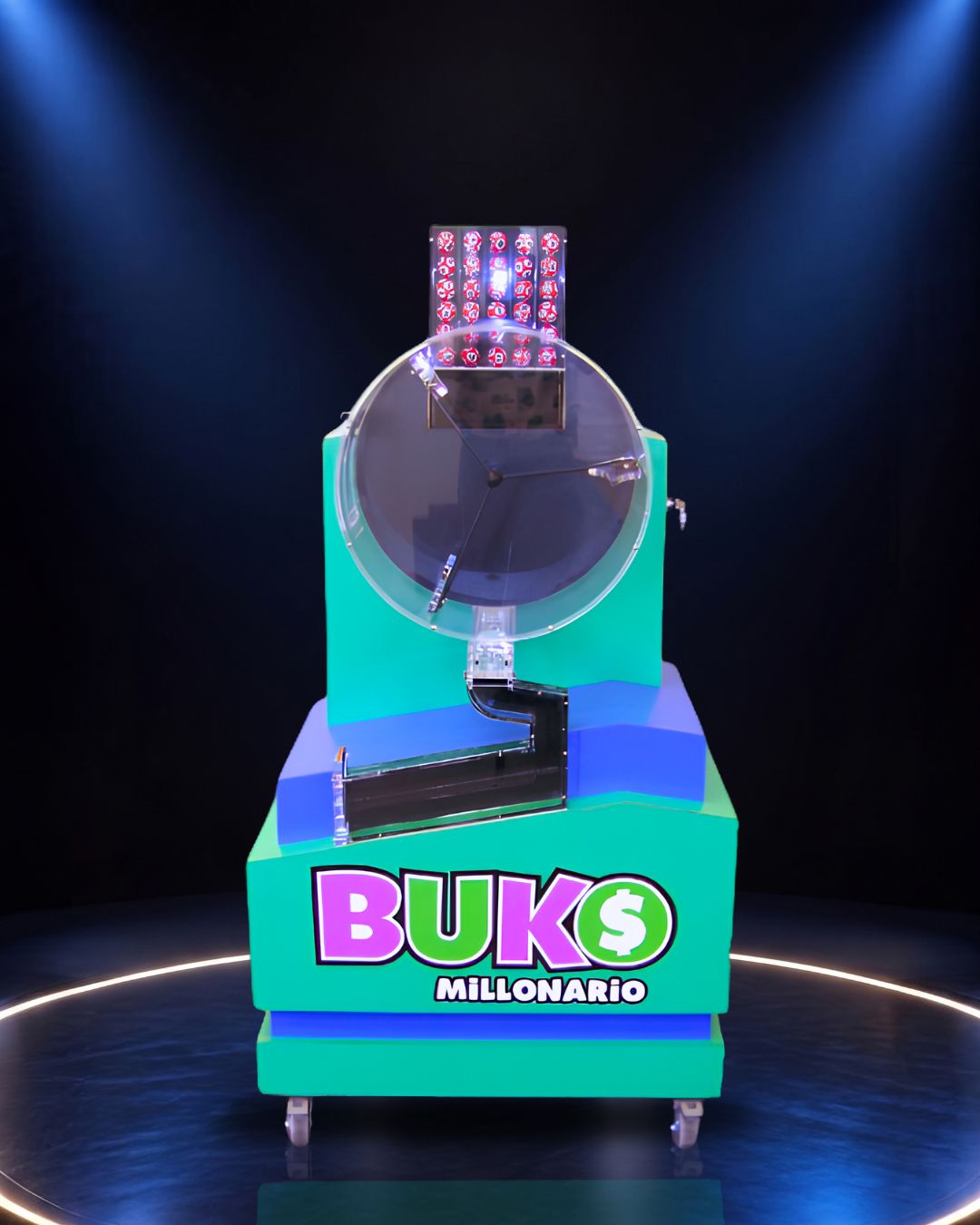

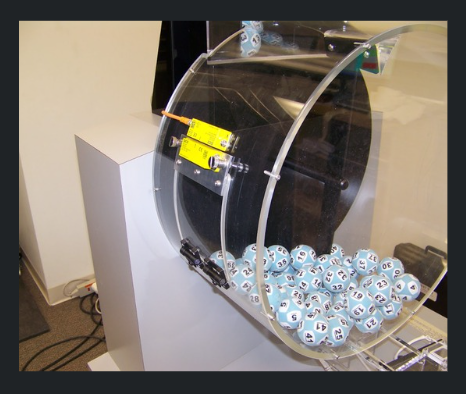

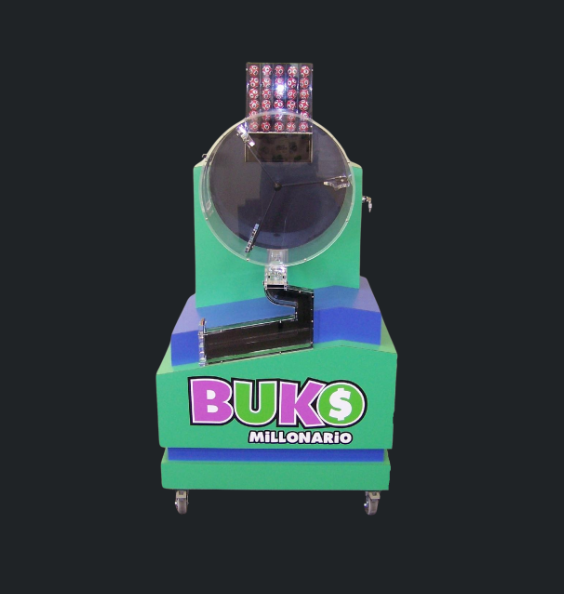

Onyx
Cost-Effective Gravity Mix Lotto Machine
Onyx is a cost-effective gravity mix machine for lotto-style games, combining mechanical ball mixing with manual, remote, or automated operation. It uses rotating mixing paddles and microprocessor-controlled drawing functions.
- Draw capacity
- Up to 10 balls
- Ball size
- 1.5 in / 3.8 cm
- Gravity mix operation
- Manual, remote, or automated control
- Microprocessor-controlled operation
- Rotating mixing paddles
- Pneumatic ball selection
- Adjustable draw settings

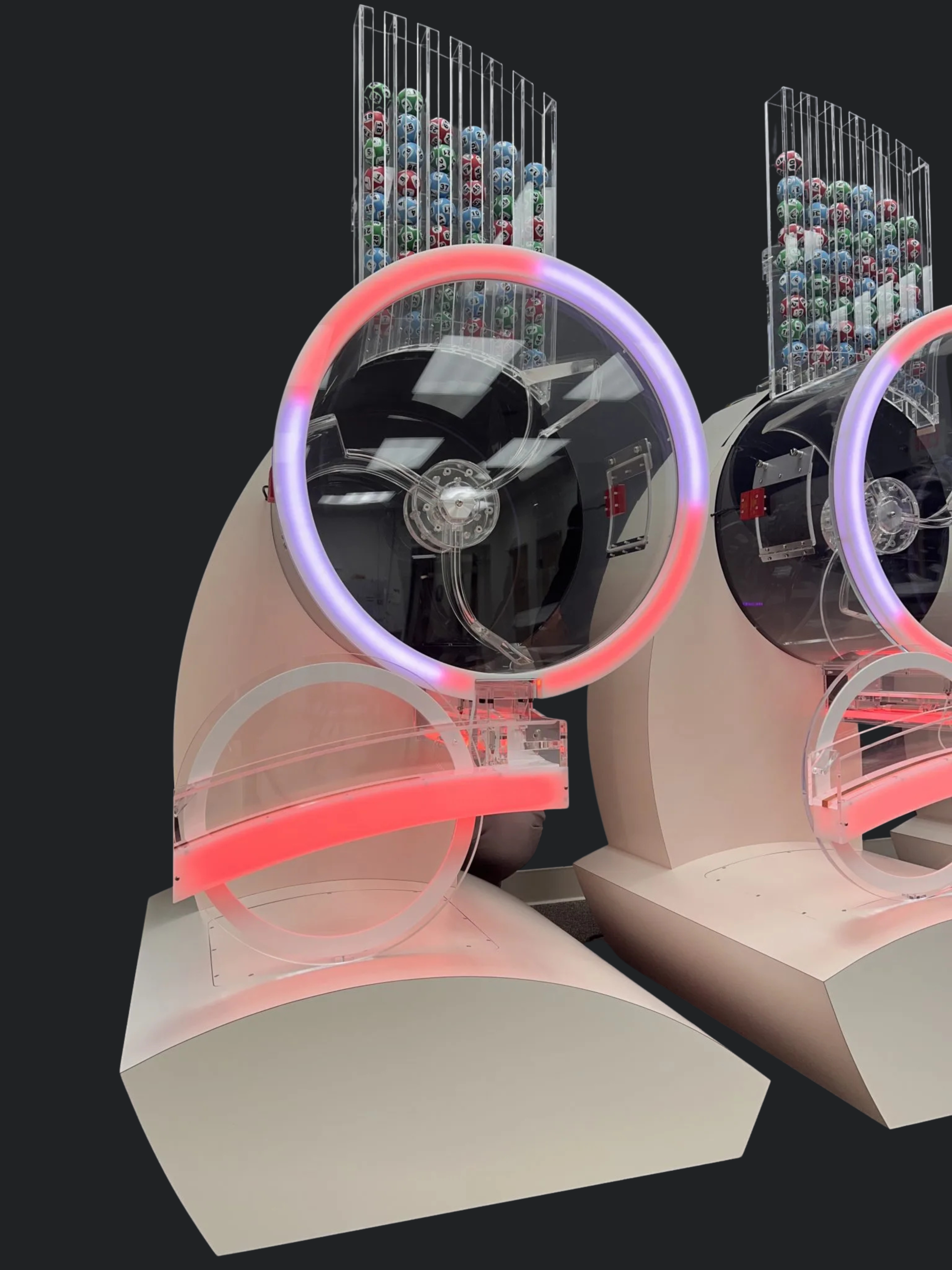

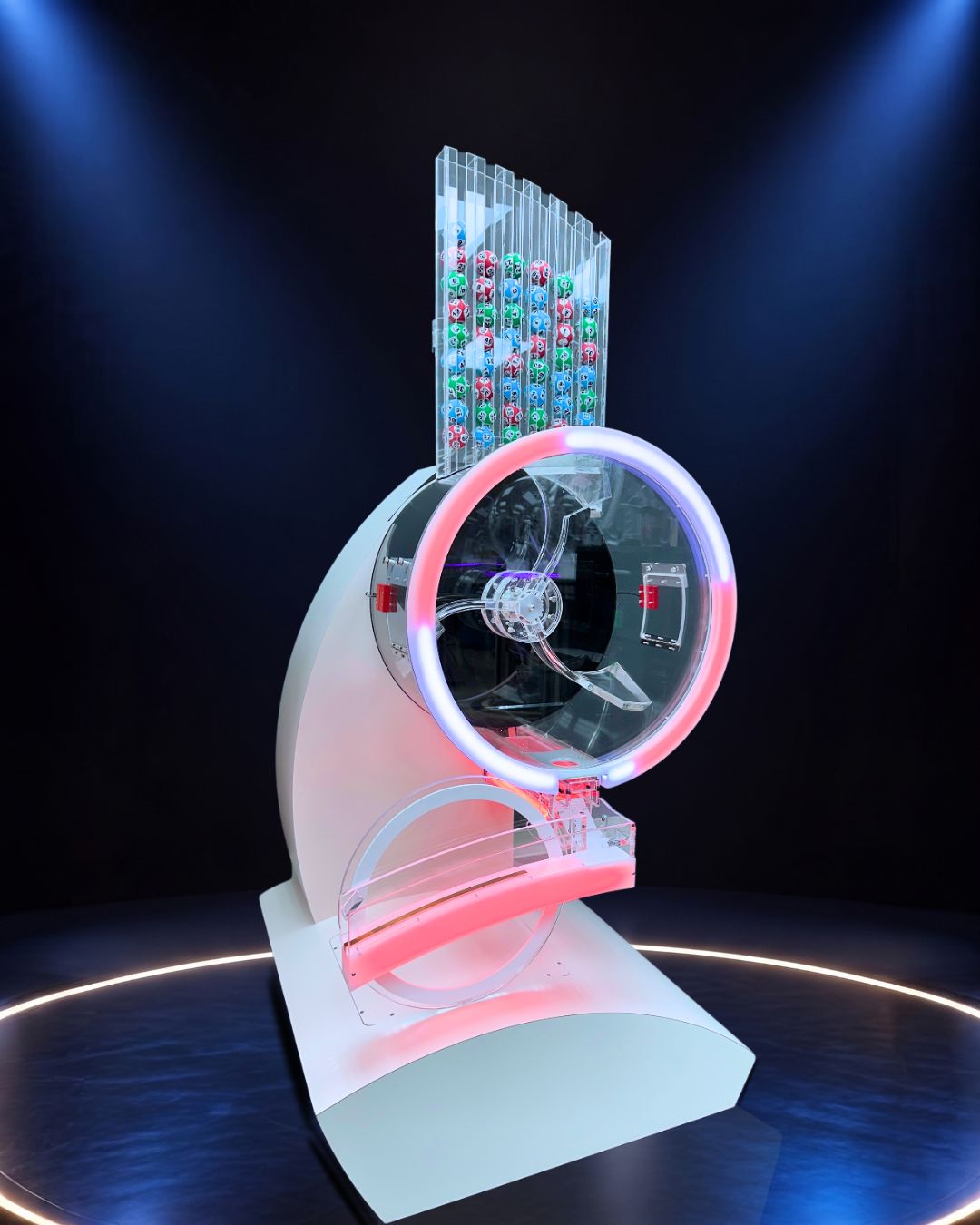

Magnum
High-capacity, paddle-driven mix.
Horizontally rotating paddles deliver thorough randomization at scale. In active service with WLA national lotteries across the United Kingdom, Ghana, and Vietnam.
- Mix capacity
- 300
- Draw capacity
- 12
- Ball size
- 50 mm foam
- RFID option
- Custom lighting

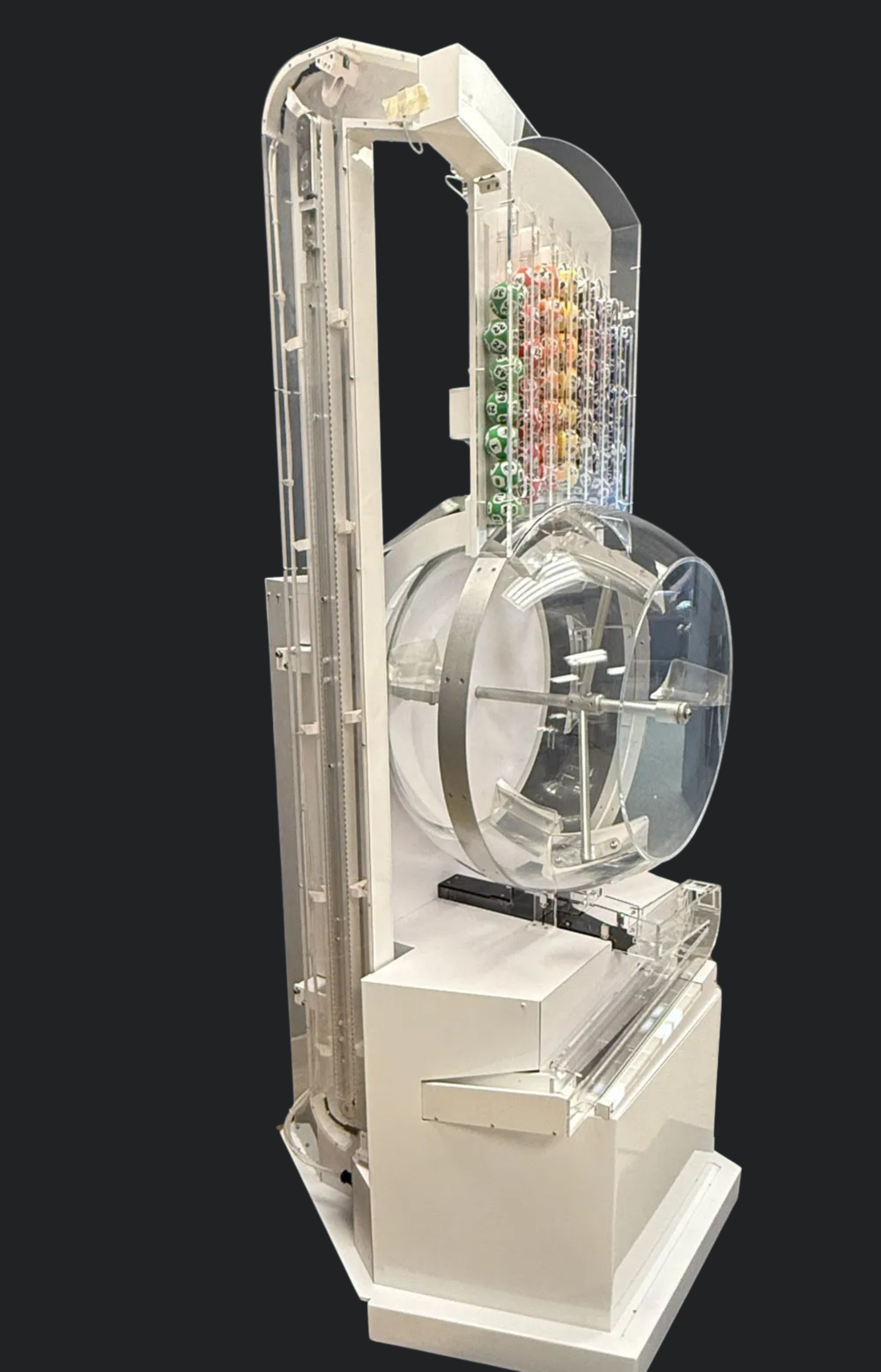

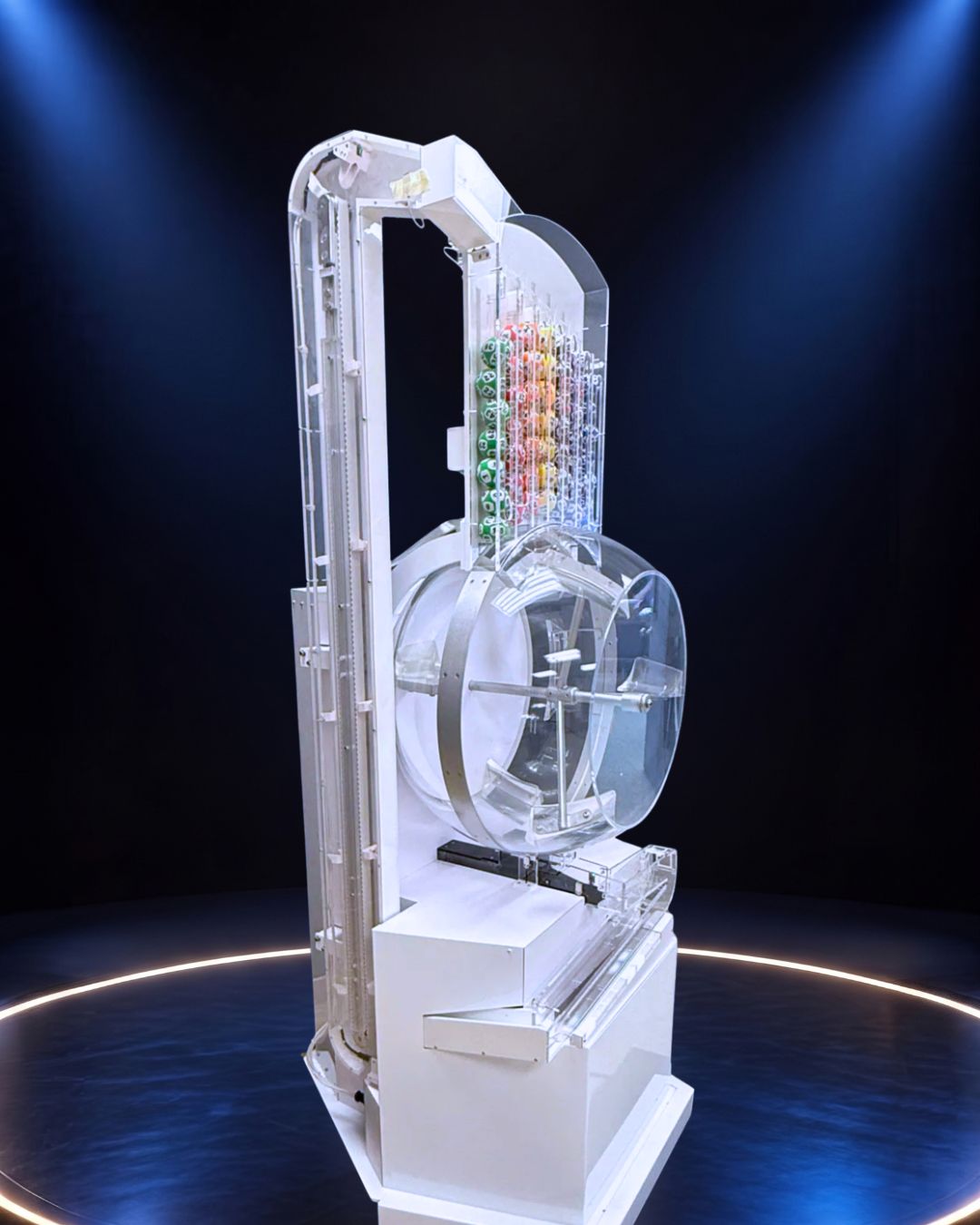

Criterion III
The next-generation gravity machine.
The first Smartplay model to return drawn balls to the rack in sorted order via an integrated elevator system. Built-in recycling, full API integration, RFID-ready.
- Mix capacity
- 300
- Draw capacity
- 10 lotto / 20 keno
- Ball size
- 50 mm foam
- Auto ball recycling
- Elevator ball return
- RFID + API integration

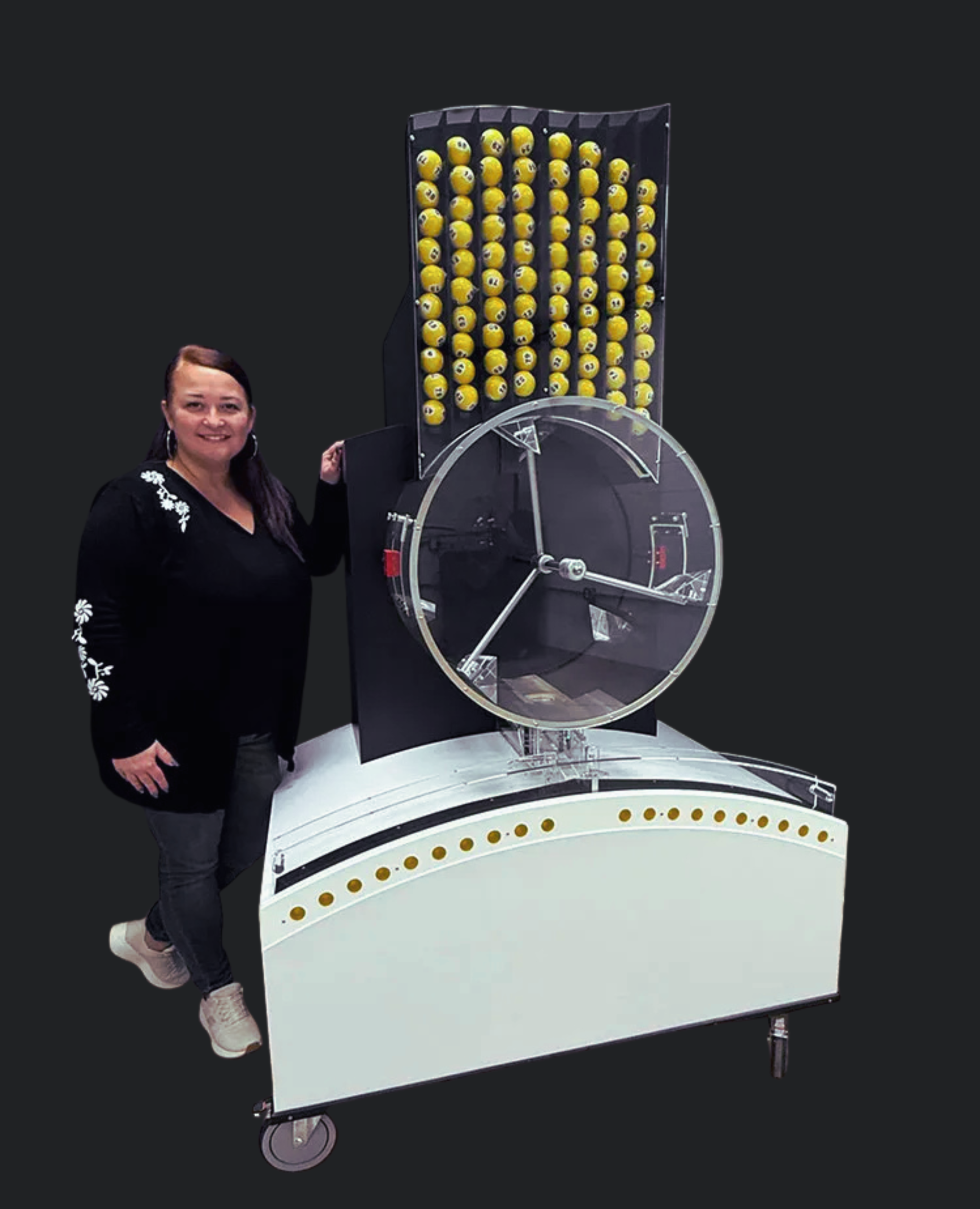

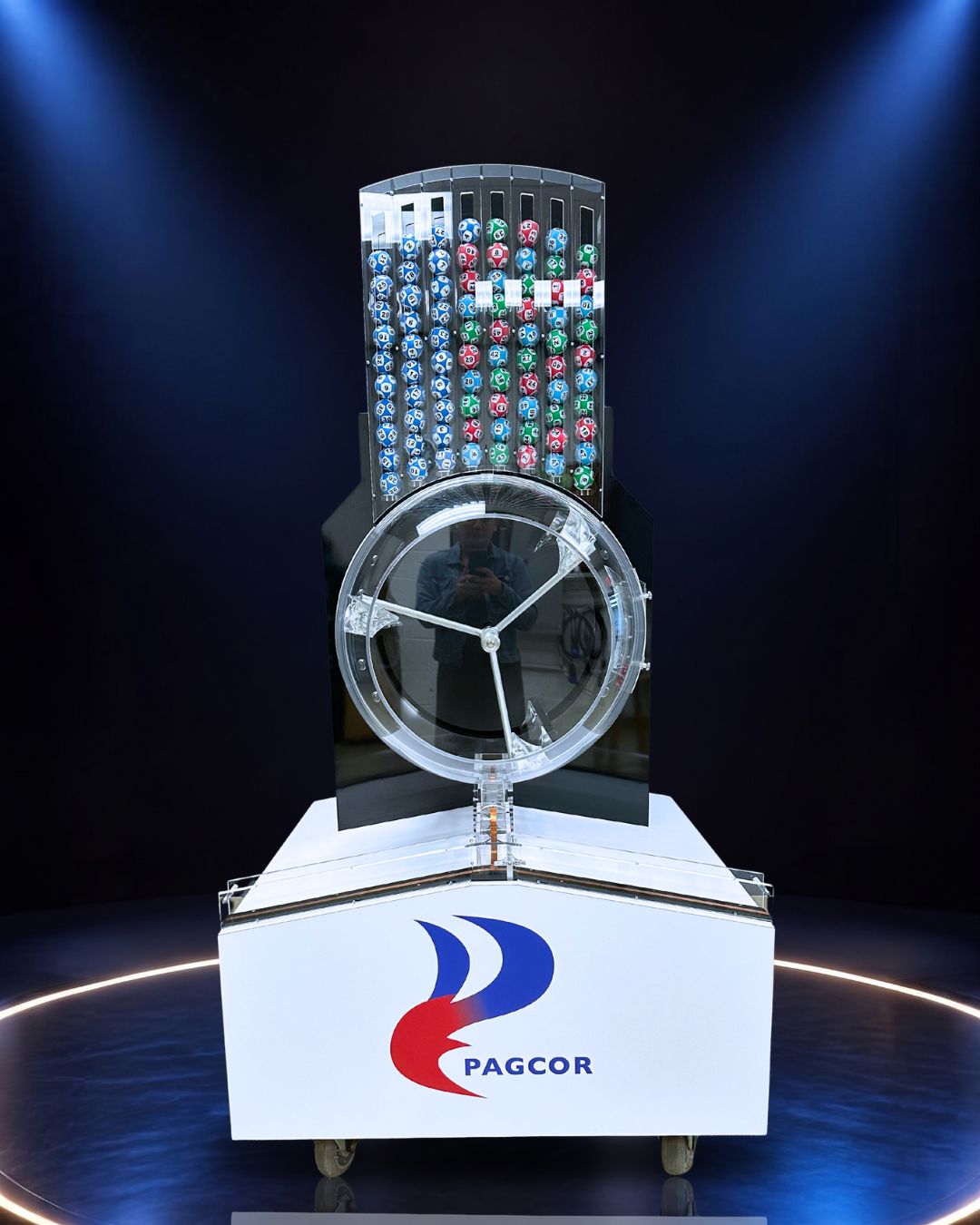

Criterion
Dual-arm mechanical mix.
Twin rotating mixing arms move in opposite directions for thorough randomization. A proven, lower-footprint alternative to the Criterion III, with decades of reliable operation.
- Mix capacity
- 100
- Draw capacity
- 10 / 20
- Ball size
- 50 mm foam
- Dual rotating arms
- Compact footprint
Comet
Single-digit, single-stage drama.
A compact single-digit gravity machine with theatrical lighting effects. Perfect for bonus balls, promotional pulls, and televised single-digit reveals.
- Mix capacity
- 12
- Draw capacity
- 1 ball
- Ball size
- 50 mm foam
- Dramatic LED effects
- Compact design

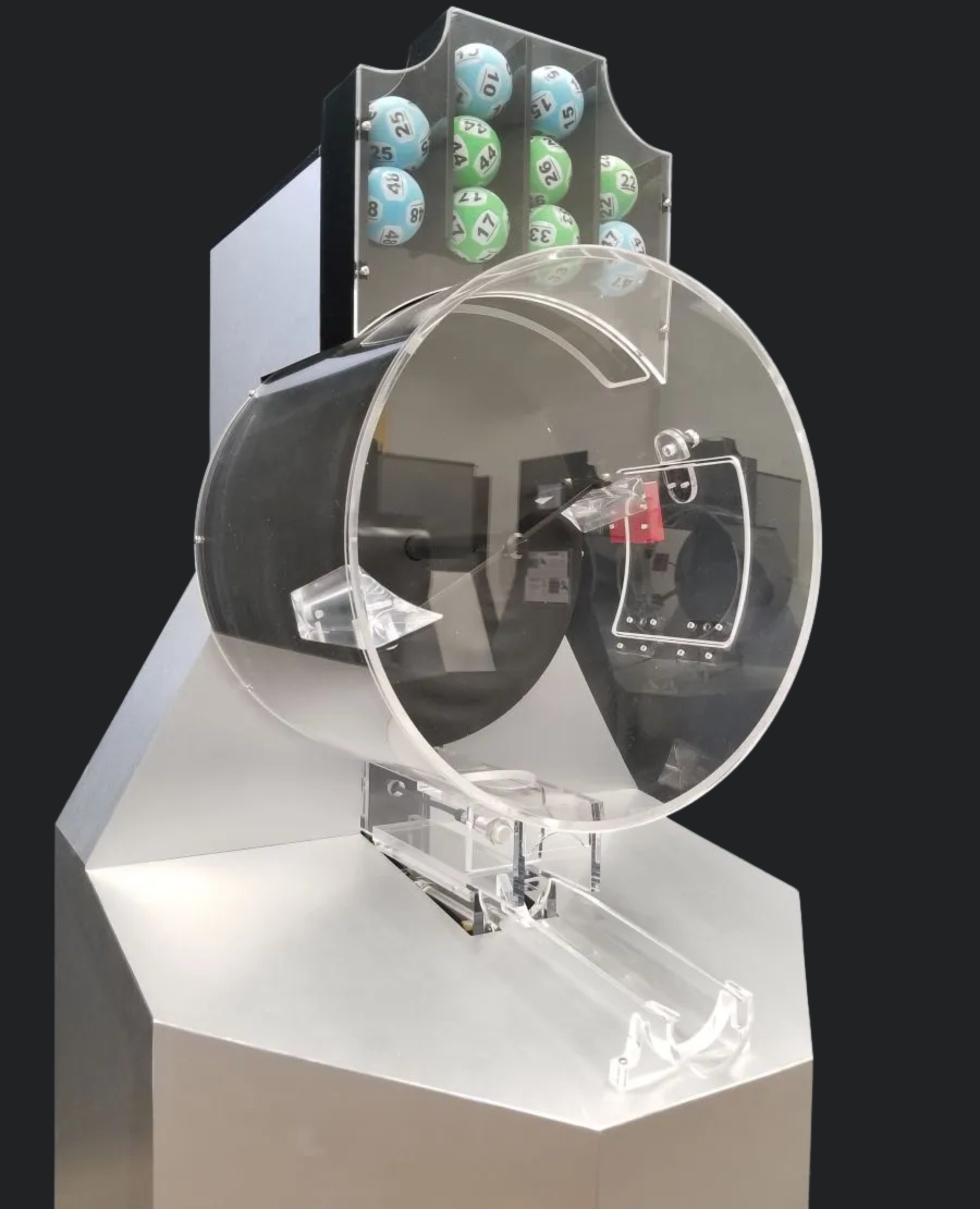

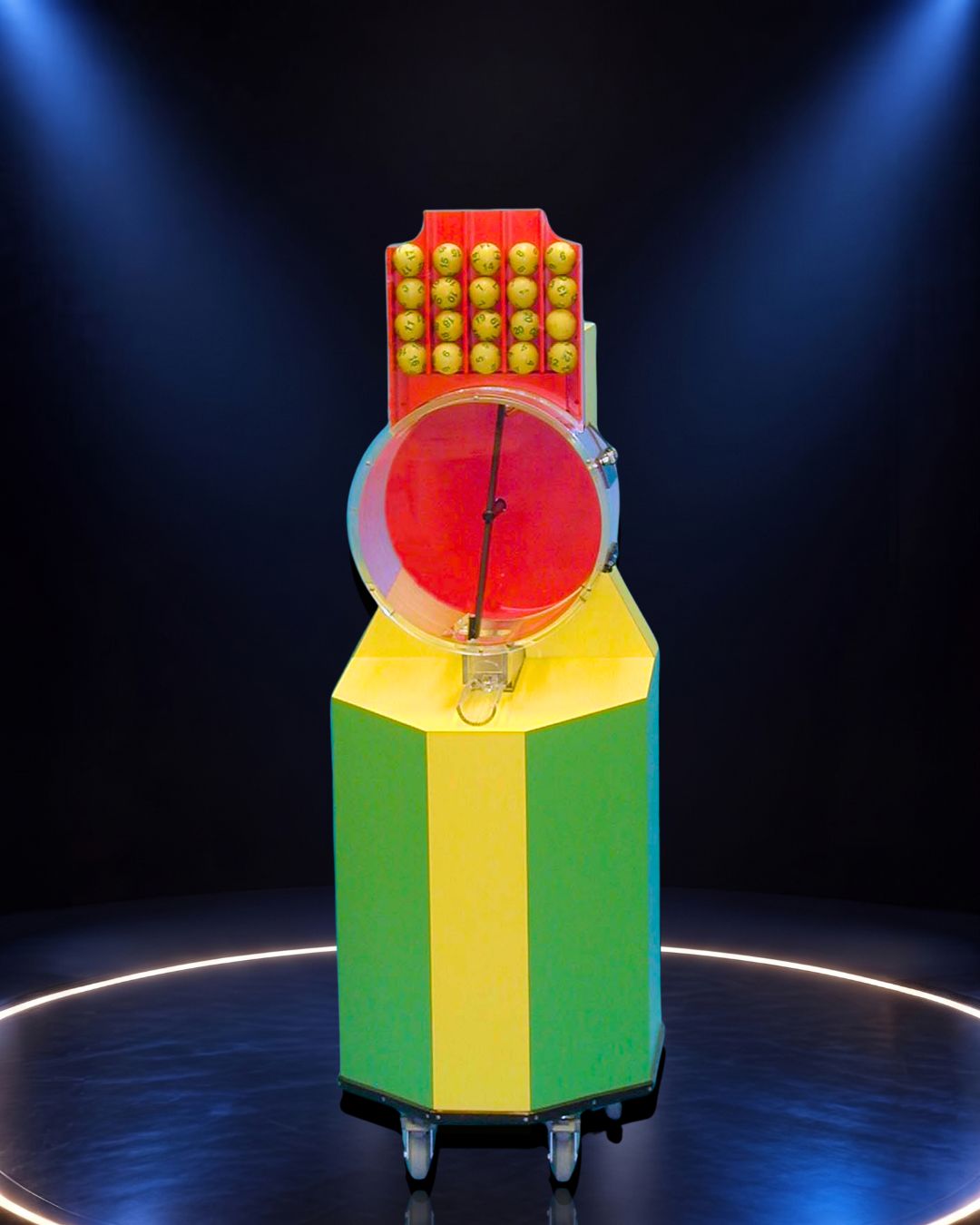

Messenger
Built for multi-machine games.
Single-digit gravity machine designed to run in multiples — ideal for 3-digit, 4-digit, joker, or bonus-number games. Each unit operates independently or in sync.
- Mix capacity
- 12
- Draw capacity
- 1 ball
- Ball size
- 50 mm foam
- Synchronized multi-unit setups
- 3D / 4D / joker games
Custom games.

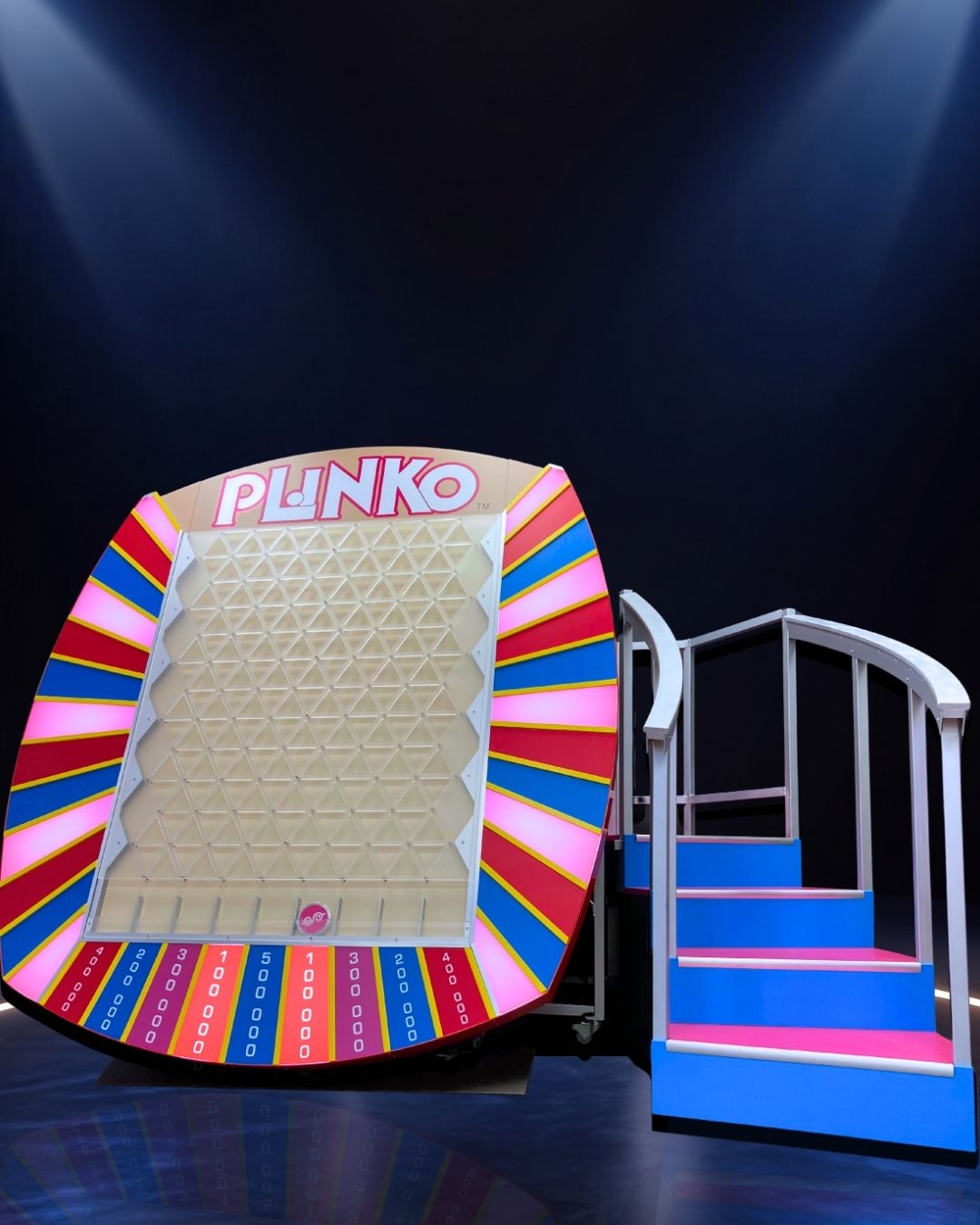

Plinko
Interactive Plinko Prize Board
Interactive prize board designed for three-attempt games, with illuminated prize areas, sensor-activated prize slots, and a modular construction for transport.
- Draw capacity
- 3 attempts per game
- Internal LED perimeter lighting
- Backlit prize areas
- Sensor-activated prize slots
- Adjustable board pitch
- Modular travel design
- Locking casters
- Three pucks per game board
Accessories.

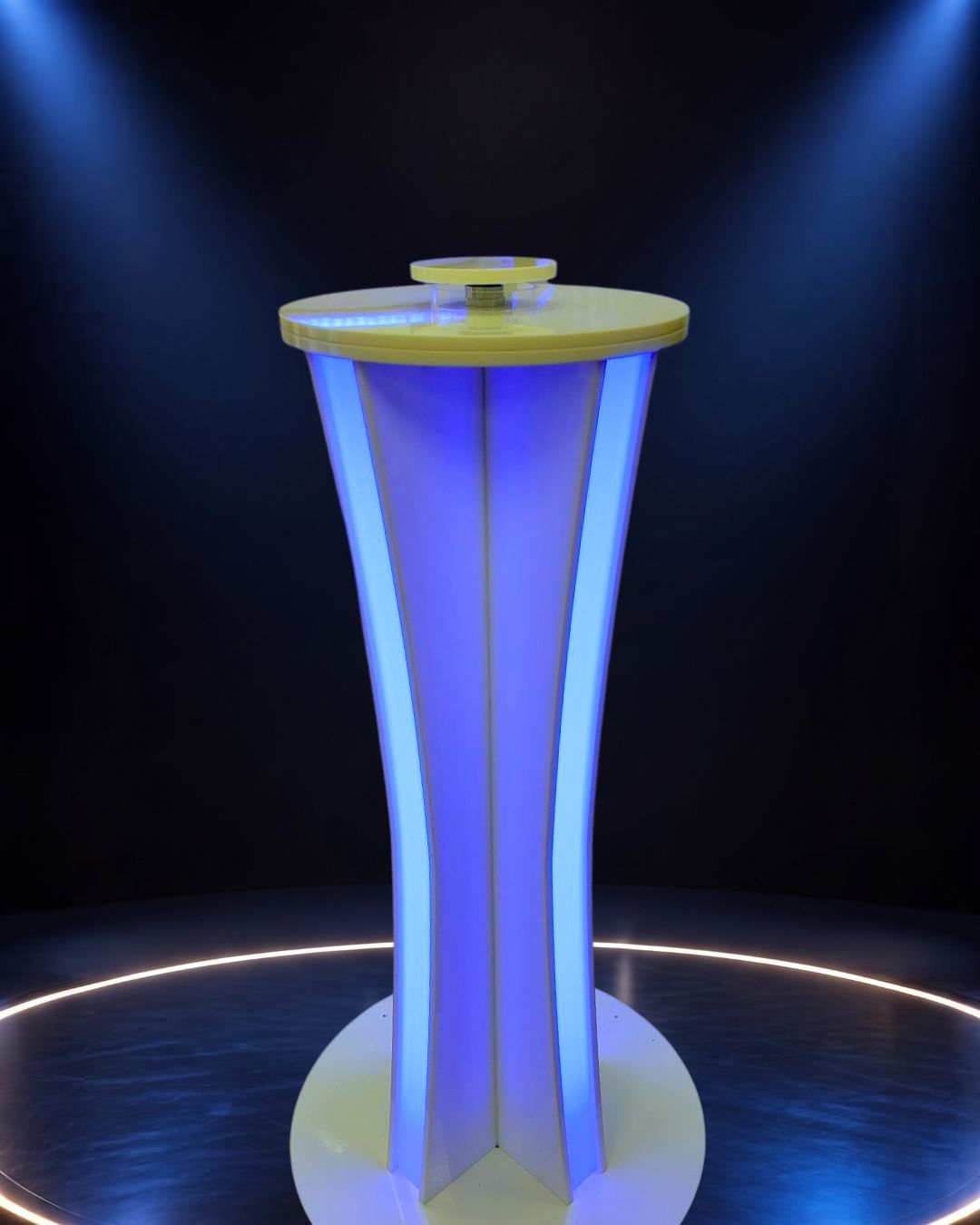

Pedestal
A Sleek Control Pedestal for Smartplay Machines
The Pedestal is designed to enhance the player experience with a sleek control unit that initiates winning-ball selection with a single button. Its design complements Smartplay machine models and includes customizable LED lighting. Image path
- Draw capacity
- 1 machine
- Single-button ball selection
- RGB LED lighting
- Customizable lighting
- Aluminum frame
- Compatible with Smartplay machine models
Lottery RNG.

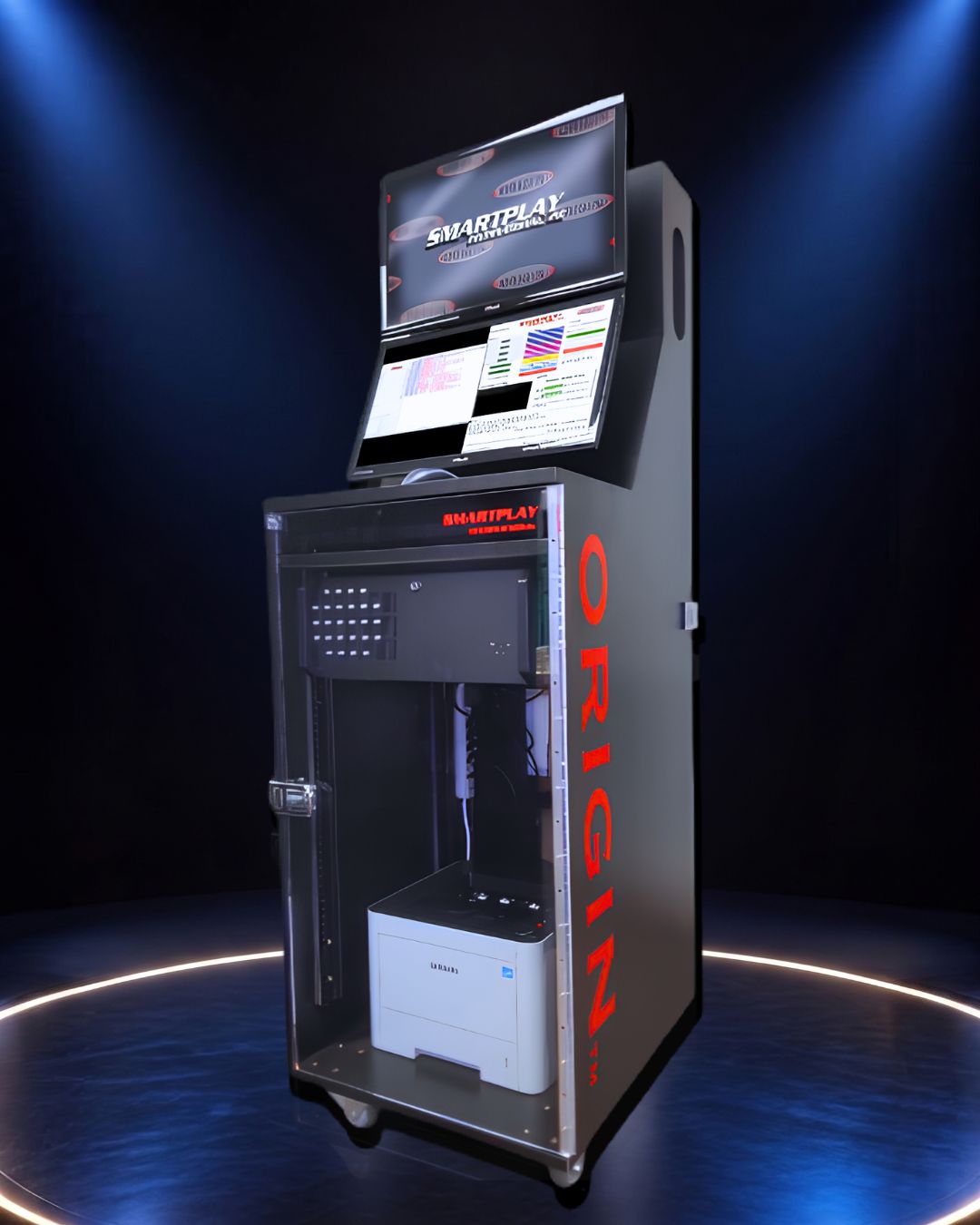

Origin® Workstation
Secure Air-Gapped Random Number Generator
GLI-certified, air-gapped digital draw system combining hardware random number generation with high-security audit logging for lotteries worldwide.
- Max Capacity
- Unlimited Digital Matrix
- Draw Capacity
- Flexible per game configuration
- Ball Size
- N/A (Digital)
- Air-Gapped Secure Workstation
- GLI & KPMG Certified RNG
Every model · Configurable
Options & integrations available on every machine.
RFID Ball Recognition
SmartBall RFID technology assigns each ball a unique identifier — fully automated result capture with no manual entry.
Custom LED Lighting
Branded color schemes, dynamic effects, and broadcast-grade illumination — engineered around your studio look.
Software API Integration
Open APIs for result capture, ball validation, and on-screen graphics — drop-in compatibility with your existing platform.
Green-Screen Backer
Chroma-key integration for broadcast environments — composite live draw footage with on-air graphics seamlessly.
Ball Recycling Systems
Automatic ball return and re-rack for high-frequency draws — no operator handling between rounds.
High-Security Jackpot Mode
Tamper-evident seals, locked enclosures, and multi-party access protocols for the largest jackpot draws.
Built for the draws that can't go wrong.
Built in New Jersey
Designed, engineered, and fabricated at our facility — no outsourced components. Every machine traceable to its build.
20+ year service life
Many Smartplay lottery machines have been in continuous operation for over two decades. Precision manufacturing pays dividends in uptime.
Certified randomness
Independently tested by GLI for randomness, security, and audit compliance. Every game on every model.
24/7 global support
In-house technicians dispatchable to 128 countries. One-year warranty on every new system shipped.
